Atlas Transit

670205

Regular price$849.99
/
Manufacturer's Suggested Retail Price excludes shipping costs, assembly, and taxes.

Color
Size
Style

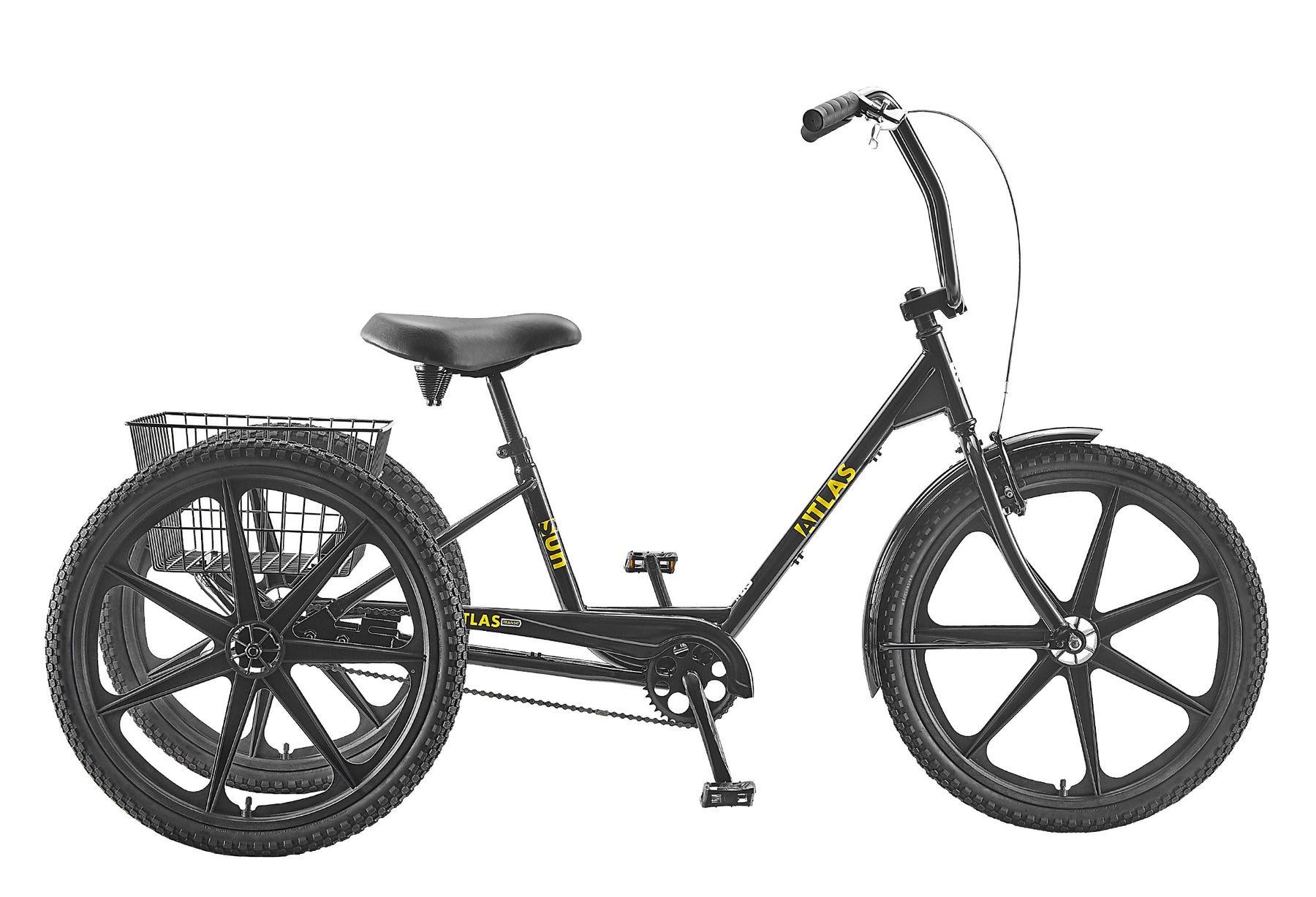

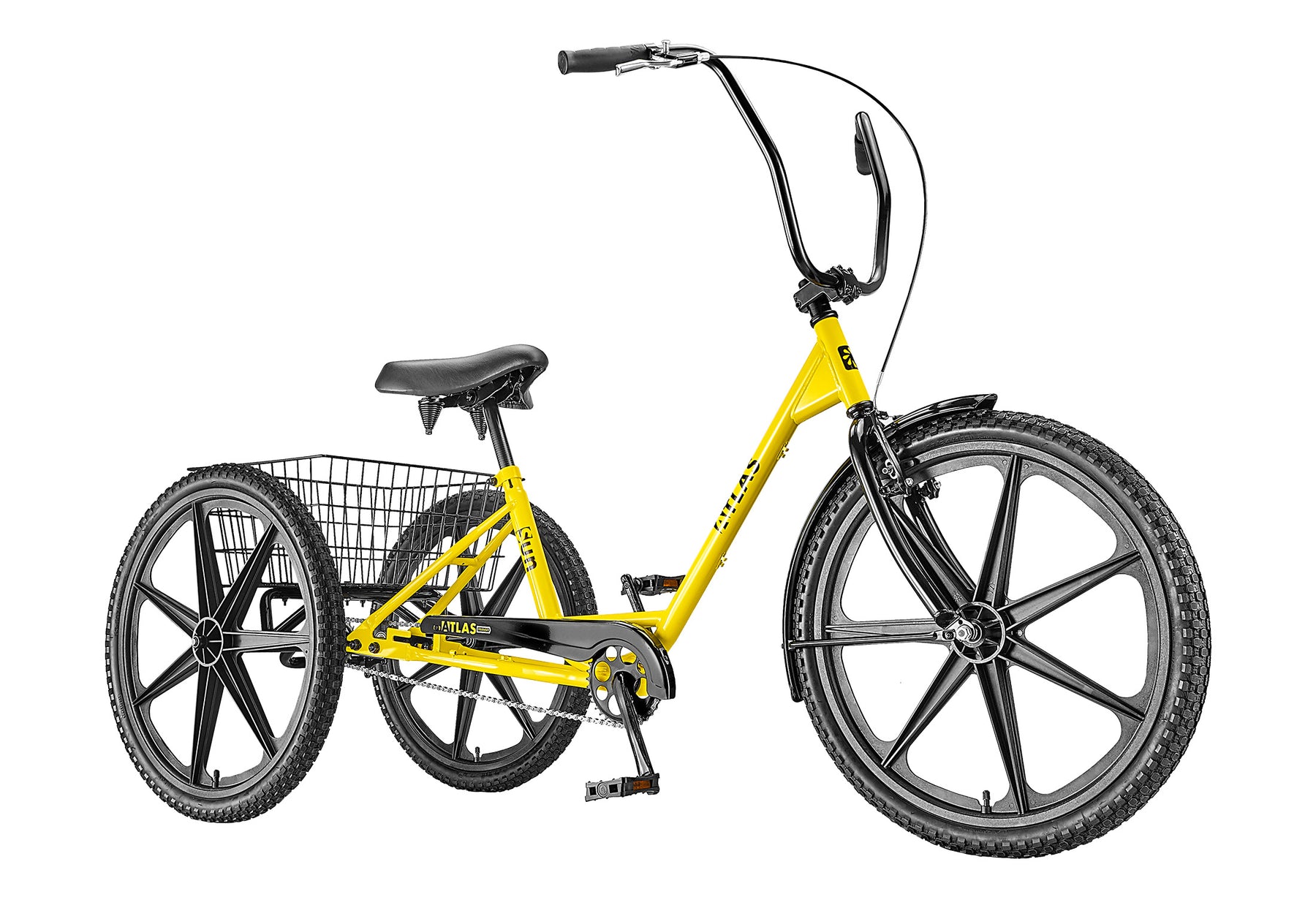

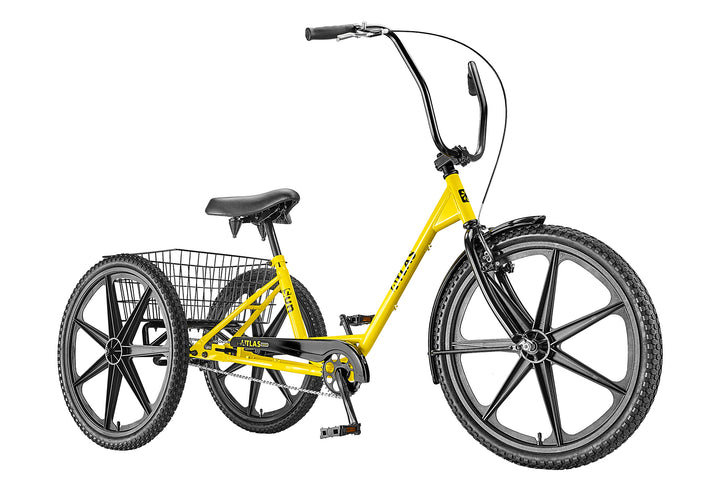

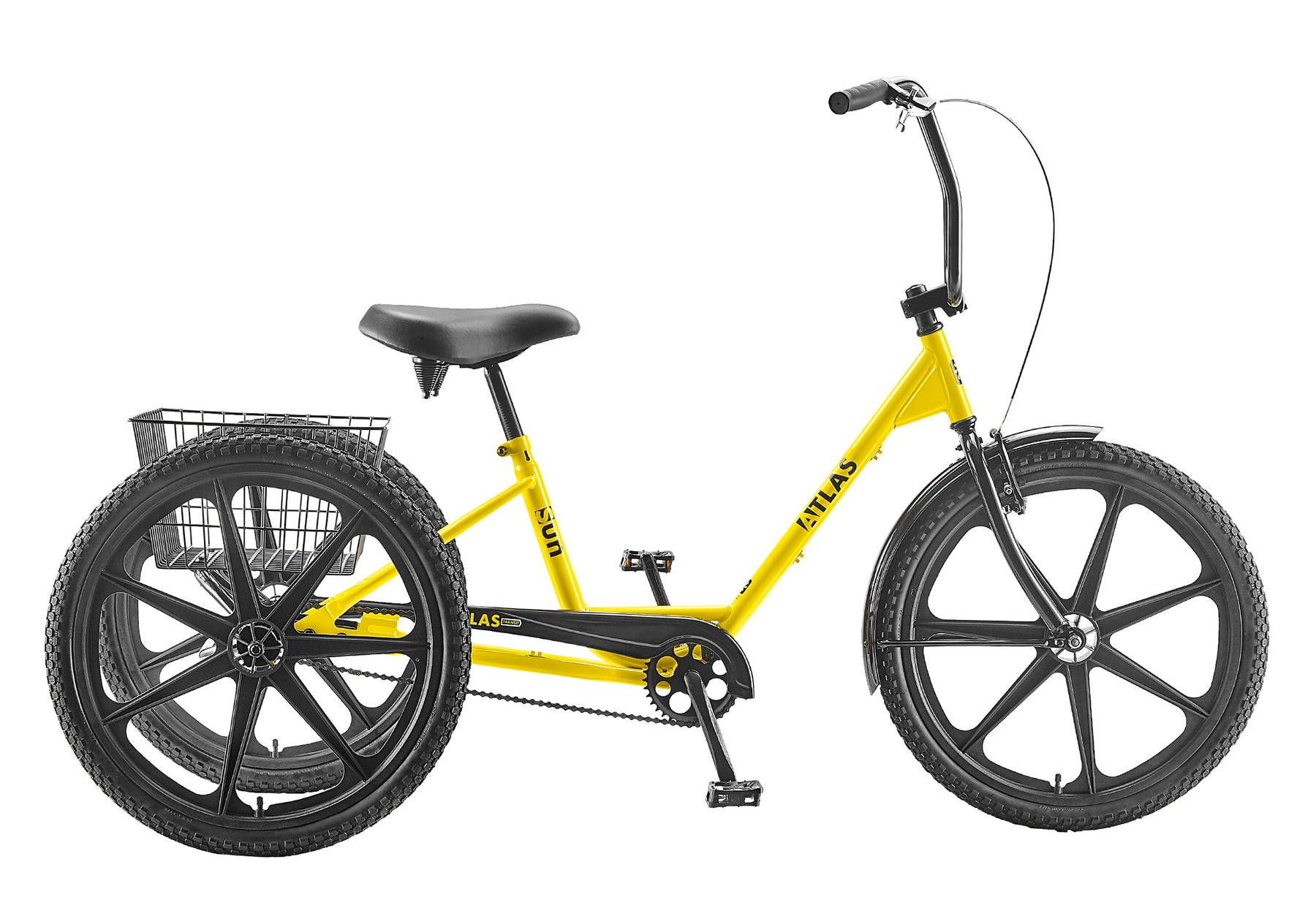

The Atlas Transit is our medium duty trike perfect for hauling groceries from the local market or transporting packages around a warehouse. The frame is designed with the same Low-Step as our Traditional trike making for easy on and off access. Along with a complement of durable components, the 24" version is customizable with 3 different wheel styles. The 20" SD version comes stock with alloy wheels, includes a Sun custom trike saddle with adjustable backrest, and Velcro toe straps for secure foot placement.

  • Wheels sold separately
  • High-tensile steel Low-Step frame
  • Single-speed drivetrain (Additional gearing options available separately)
  • Alloy linear-pull front brake with parking lock (Additional brake options available separately)
  • One-piece steel crank with sealed bottom bracket
  • 24" x 1.95" multi-condition tires
  • 13" high-rise steel handlebar and threadless MX stem, rubber grips
  • Sun XL trike saddle with heavy duty steel base
  • Steel chain guard and front fender
  • Viny coated heavy duty steel wire basket
  • Wheel options:
  • Skyway mags
  • Alloy rims with 14g stainless steel spokes
  • Heavy duty steel rims with 12g UCP steel spokes
  • MSRP shown includes Skyway mags
Loading store locator from Stockist store locator...

Details

Product Specifications

Frameset

Frame
High-Tensile Steel, TIG-Welded
Frame Rear Unit
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Fork
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets

Drivetrain

Crank Set
One-Piece Heavy Duty Hot Forged Steel, 170mm
Chainwheel
Steel, 36T x 1/2'' x 1/8''
Bottom Bracket
Steel for OPC, Caged Bearings with Seal
Freewheel
20T x 1/2" x 1/8"
Chain
Taya 1/2" x 1/8", 130 Links
Pedals
Slip Resistant Top, 1/2"

Brakes

Front Brake
Alloy, Linear Pull
Front Brake Lever
Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock

Components

Handlebar
Steel, 31.5" Wide 13" Rise x 22.2mm Clamp
Stem
Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp
Headset
Steel, Semi Cartridge Bearings, 28.6 x 34 x 30mm
Grips
Heavy Duty Rubber, 125mm
Saddle
Deluxe Cruiser, Double Coil Spring Suspension
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12"
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type

Wheels

Front Wheel
Ordered Separately
Rear Wheel
Ordered Separately
Tires
24 x 1.95", Black Wall
Tubes
24" x 1.95'', Schrader Valve

Included Extras

Chain Guard
Steel, Painted
Basket
Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High
Front Fender
Steel, W/Single Strut, Painted

Weight

Trike Weight
56 Lbs (with Skyway mags)
Rider Weight Limit
250 Lbs.
Basket Weight Limit
50 Lbs. (Not Designed for People or Pets)
Recommended Fit
5'0" to 6'2"

Notes

Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

Bike Geometry

Bike Geometry Diagram
Measurement Ref 17"
Seat Tube, Center To Top A 17"
Top Tube, Effective B 27.5"
Top Tube, Actual B4 26"
Head Tube C 5.5"
Seat Tube Angle D 70°
Head Tube Angle E 70°
Chainstay F 23"
Wheelbase G 46.3"
Bottom Bracket Drop H 1.9"
Fork Offset I 1.8"
Axle To Crown K 14.5"
Step-Thru / Standover N 13.25"
Minimum Step Through O 13.25"
Minimum Saddle To Ground 27.5"
Minimum Saddle To Pedal, Trike 27.5"
Overall Length, Trike U 71.5"
Overall Height, Trike W 45"
Overall Width, Trike V 30.25"
Wheel Size 24"
Crank Length 170mm
Stem Length 50mm
Handlebar Width 31.5" Wide / 13" Rise
