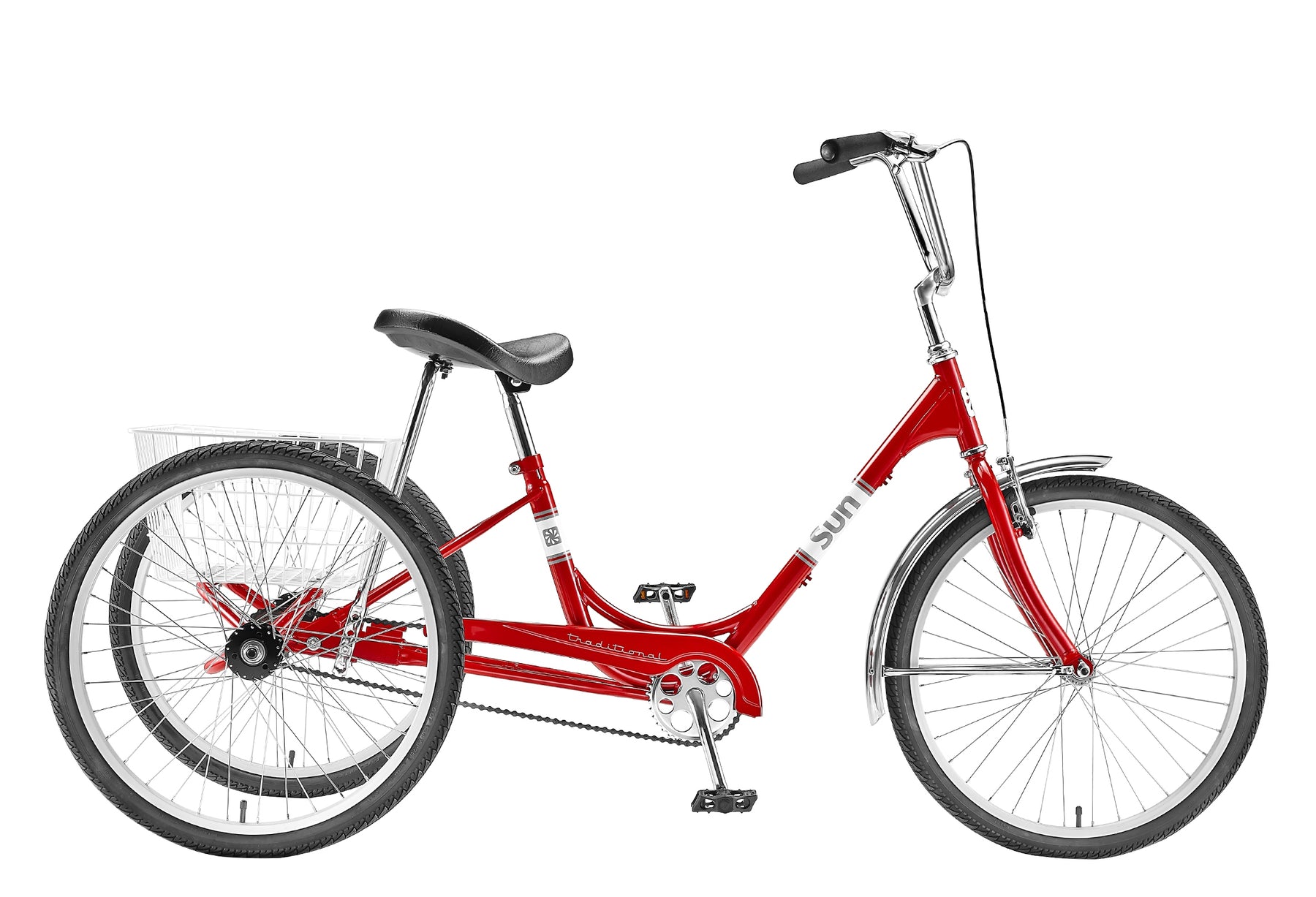

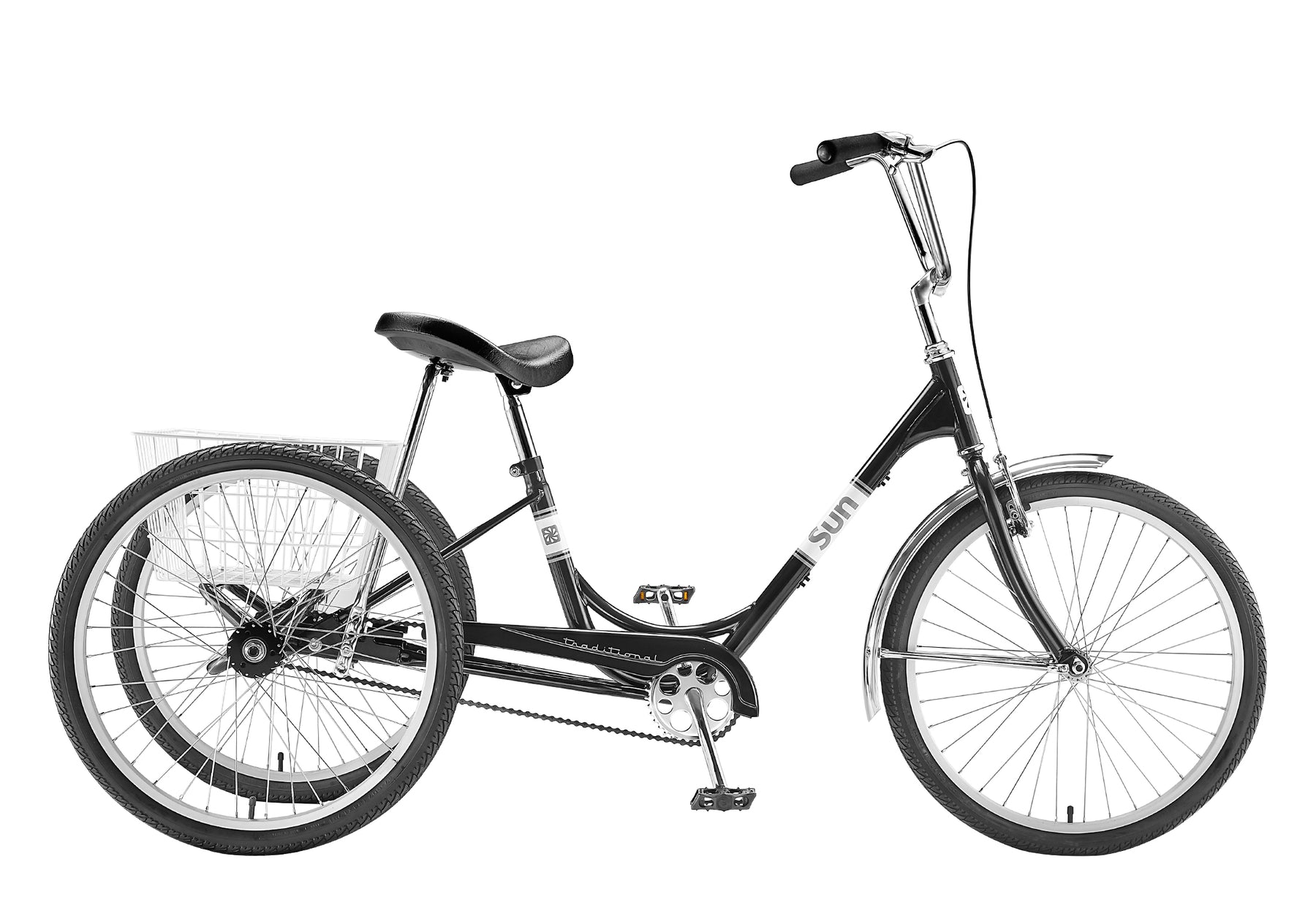

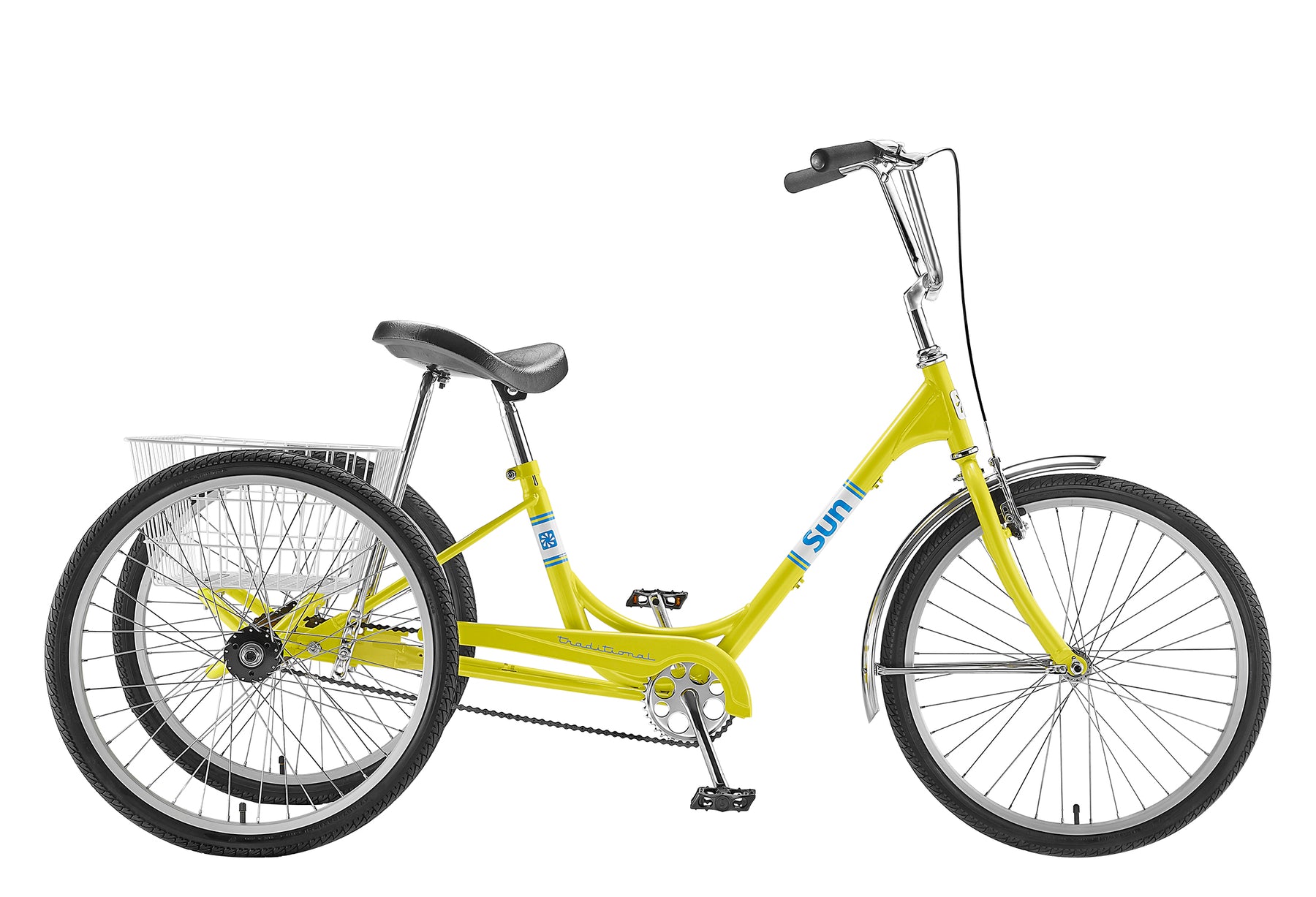

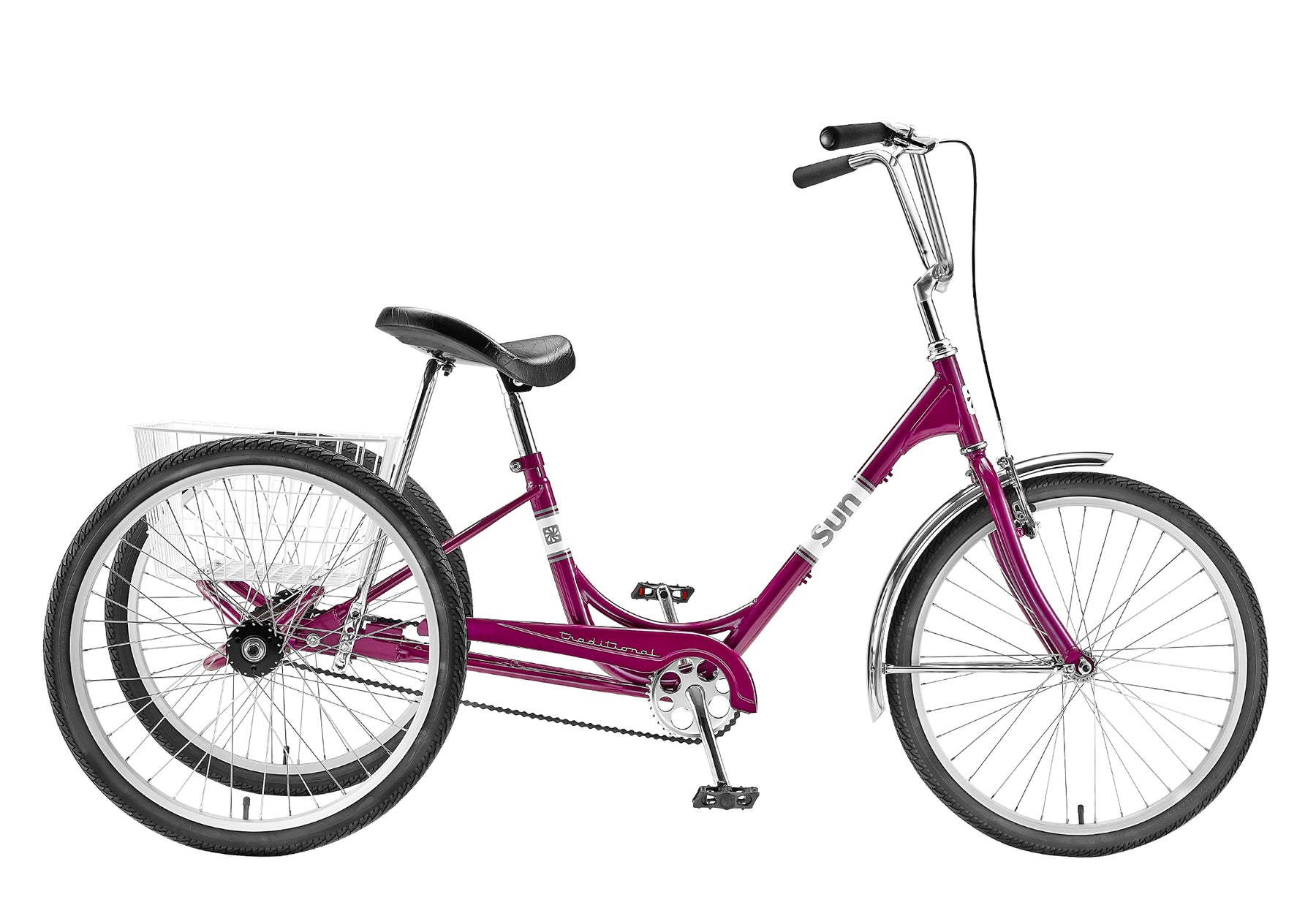

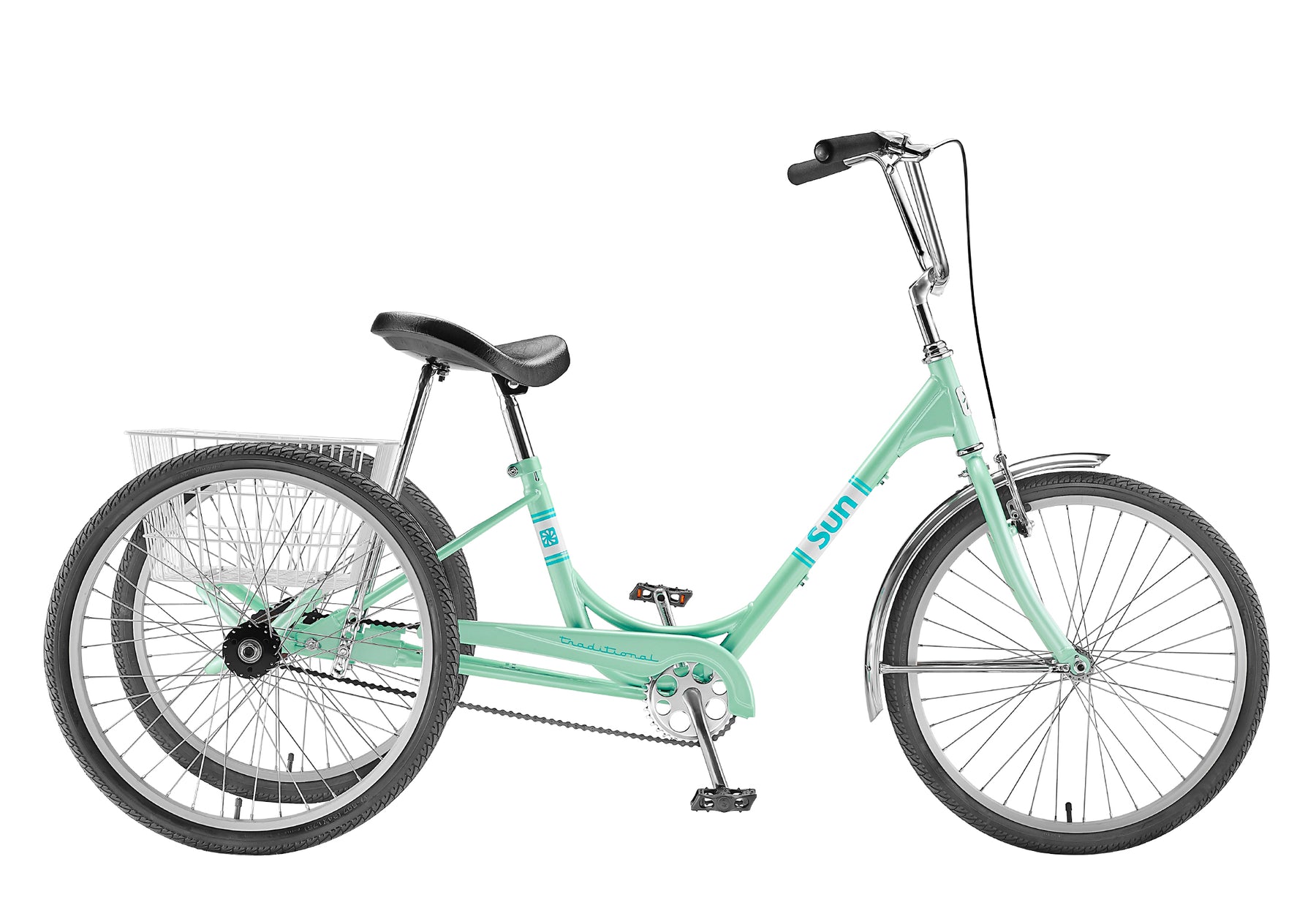

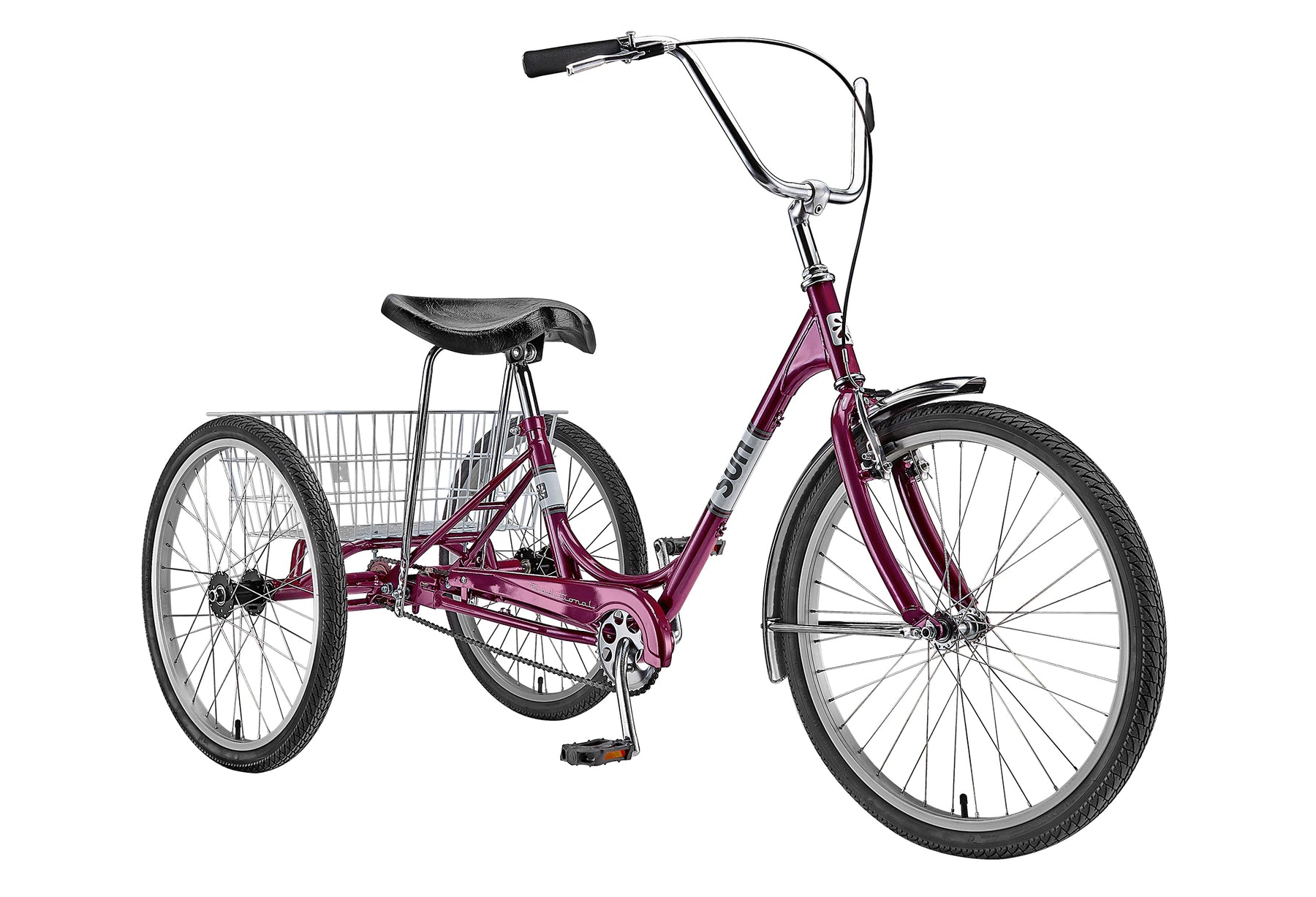

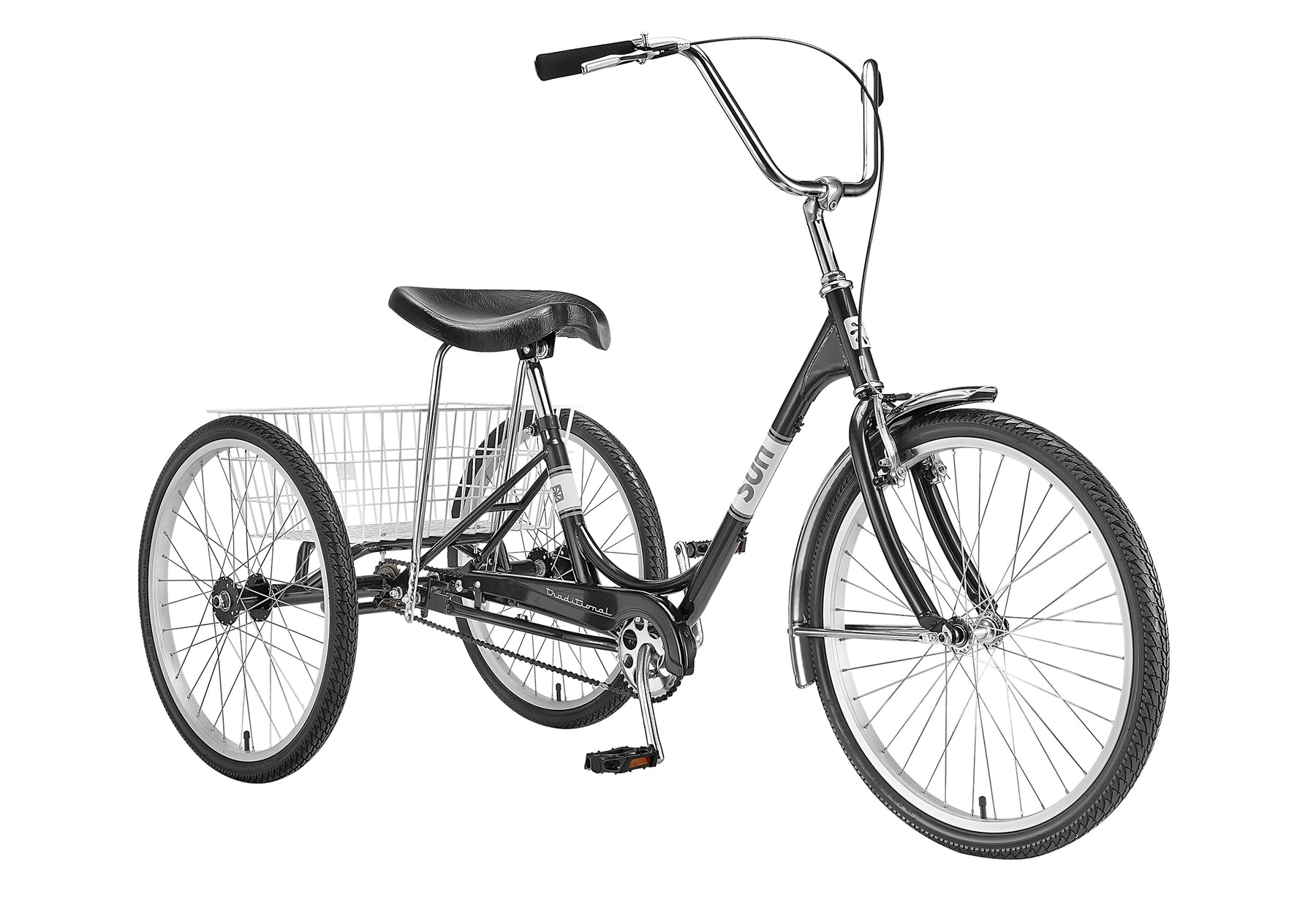

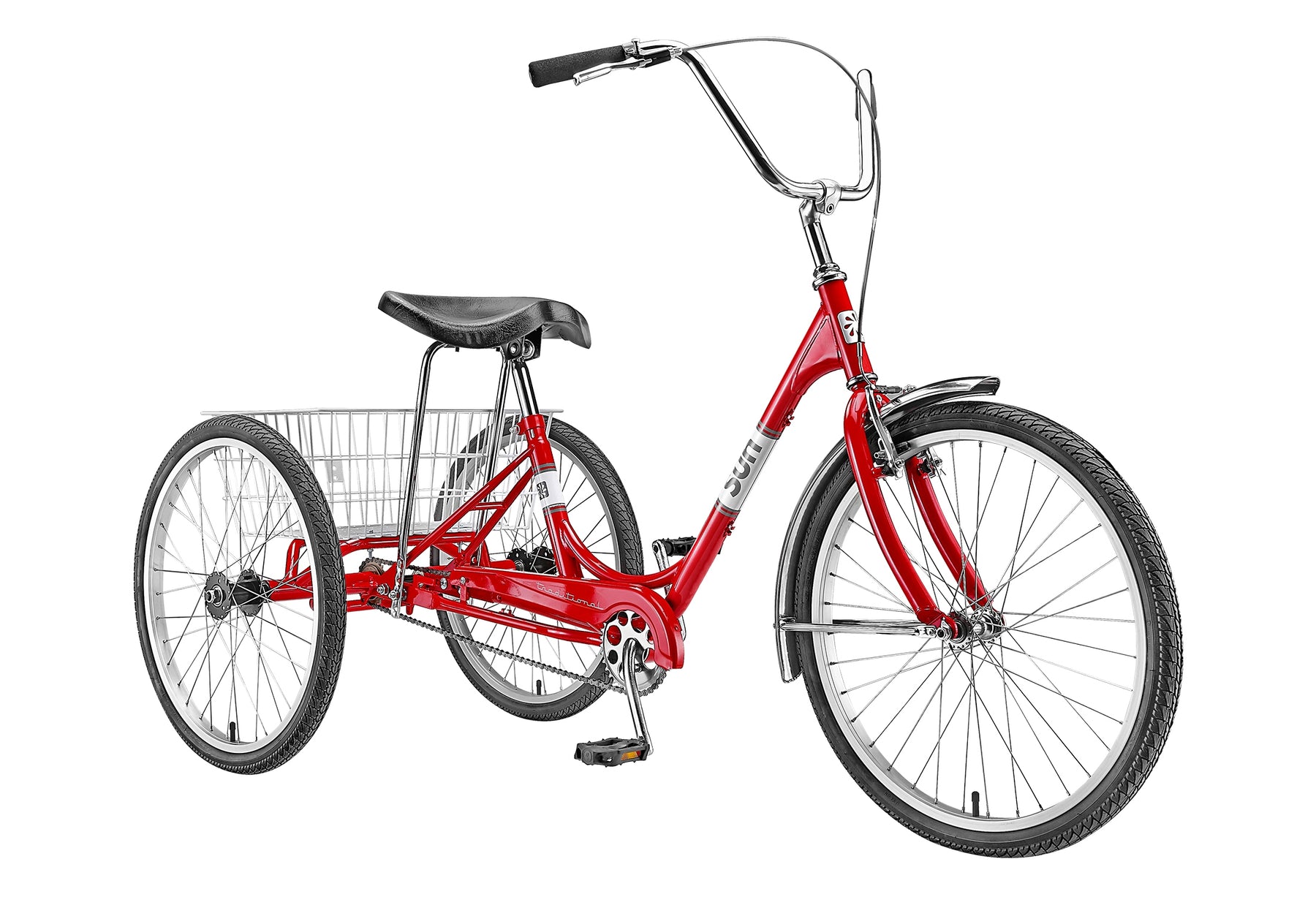

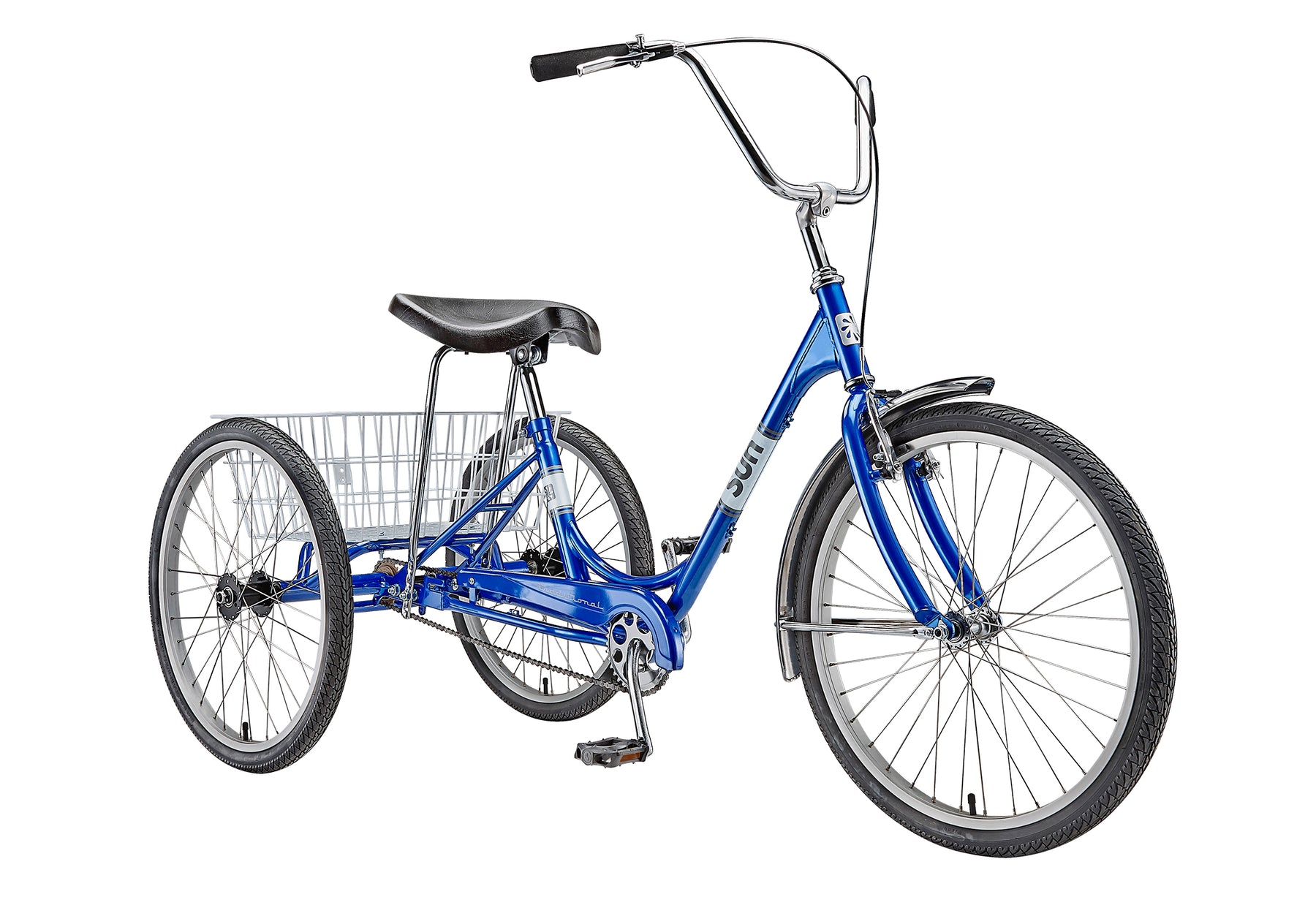

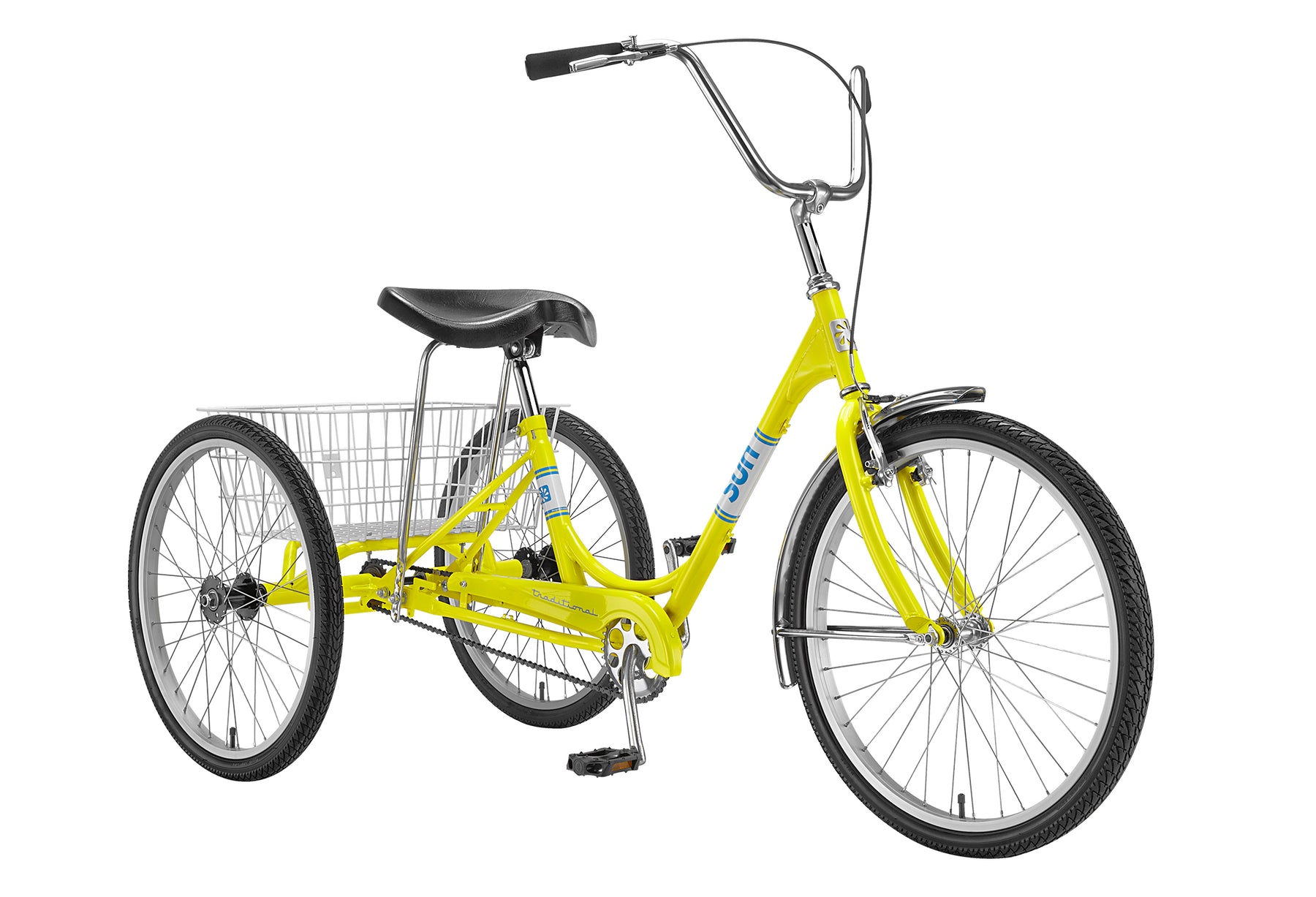

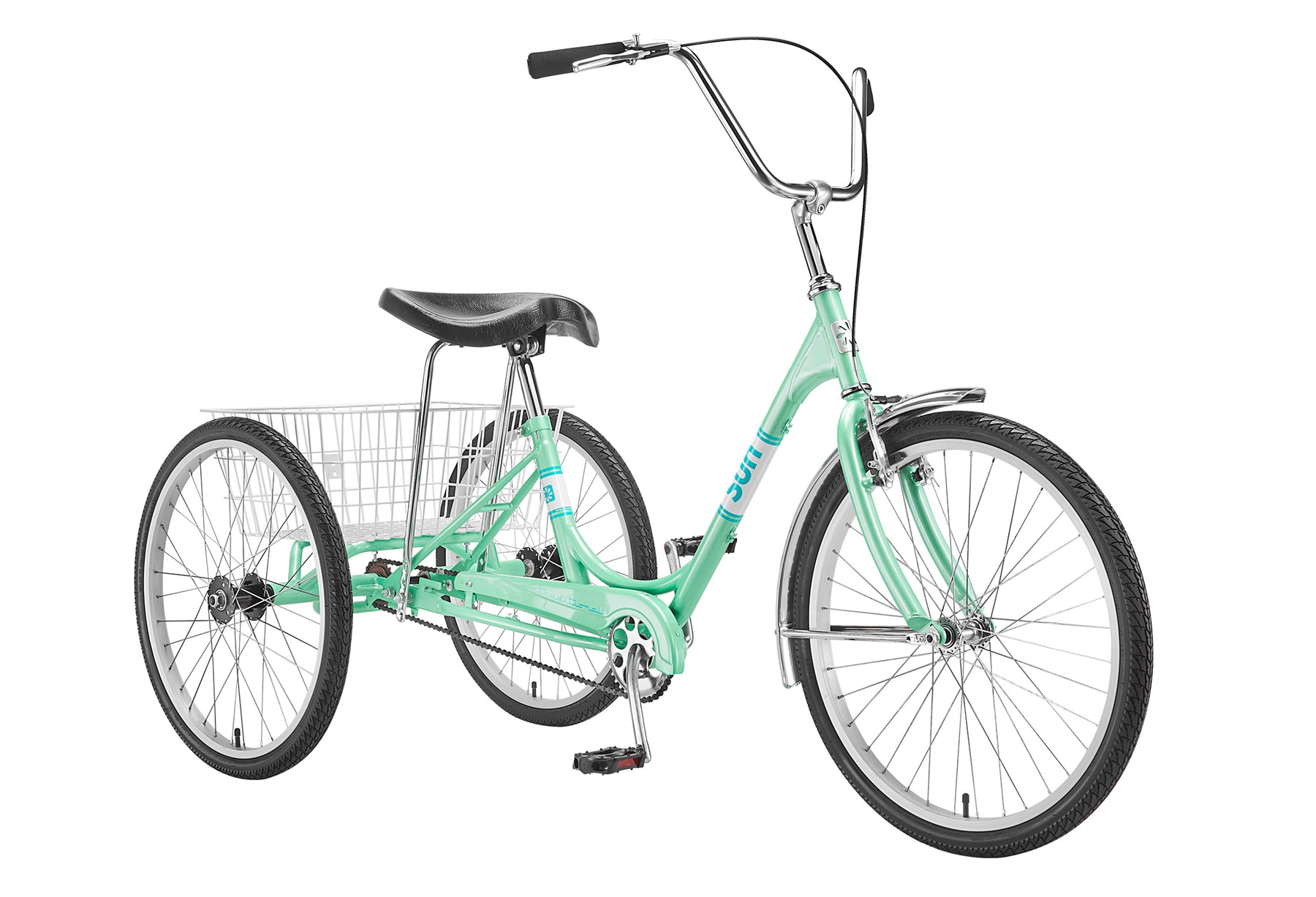

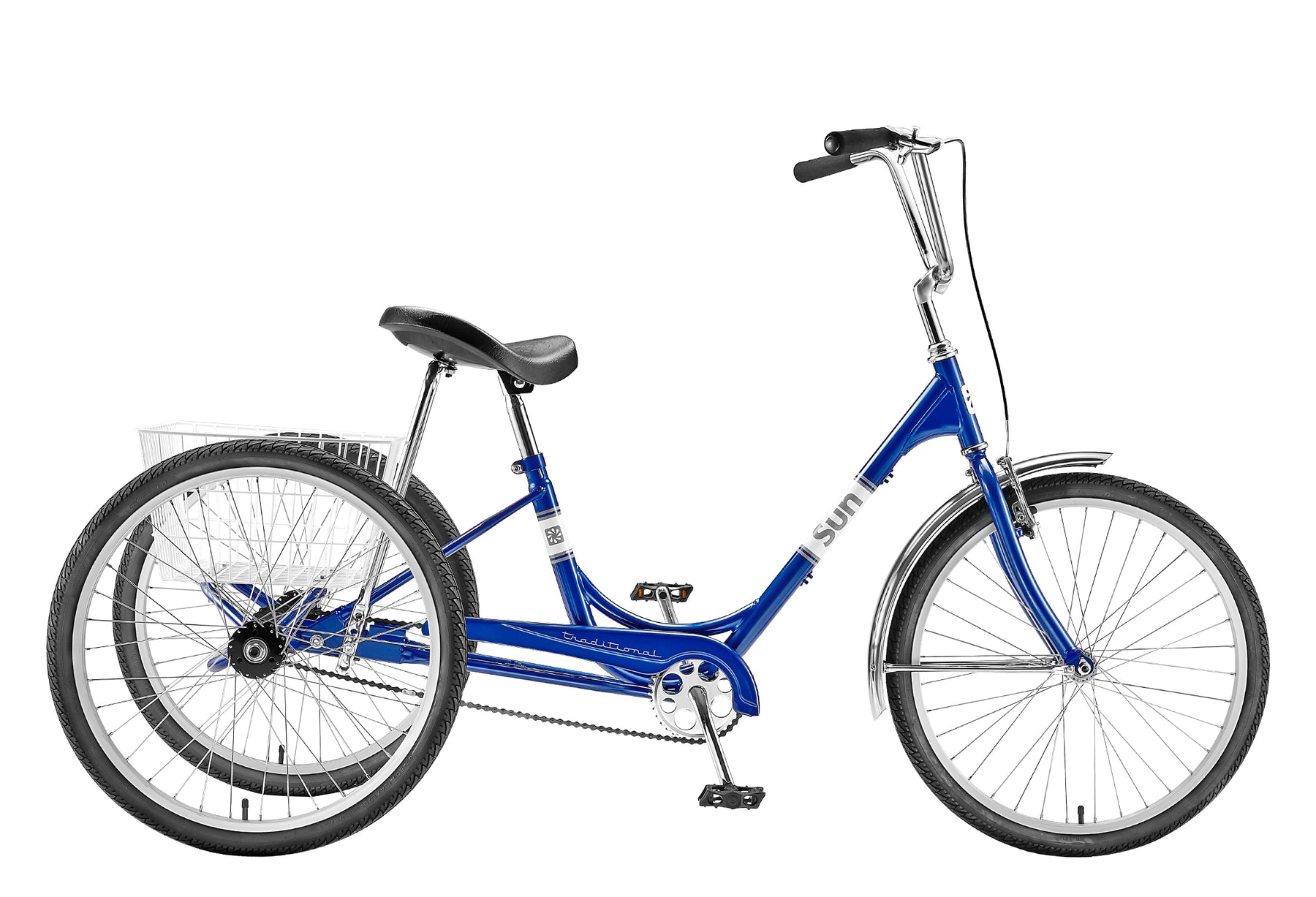

Miami Sun Traditional 24

670197

Regular price$649.99
/
Manufacturer's Suggested Retail Price excludes shipping costs, assembly, and taxes.

Color
Size
Style

The Traditional trike, a classic in its field, is purpose built with comfort, stability, durability, and practicality in mind. A super low step-through frame, upright riding position, Sun custom tractor saddle, and rear basket are just a few features that make our trike an ideal choice for trips to the market, getting a little exercise or just getting around. The Traditional trike accepts a wide range of available accessories and gearing options to suit your exact needs and riding style.

  • High-tensile steel Low-Step frame
  • Single-speed drivetrain (Additional gearing options available separately)
  • Alloy linear-pull front brake with parking lock
  • One-piece crank with caged bearing bottom bracket
  • Alloy rims with stainless steel spokes
  • 24" x 1.75" tires
  • 9" high-rise steel handlebar and stem, foam grips
  • Sun Tractor saddle with heavy duty steel base
  • Steel chain guard and nickel plated front fender
  • Vinyl coated steel wire basket
Loading store locator from Stockist store locator...

Details

Product Specifications

Frameset

Frame
High-Tensile Steel, TIG-Welded
Frame Rear Unit
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Fork
1-1/8'' High-Tensile Steel, Curved Tapered Legs, Double Eyelets

Drivetrain

Crank Set
One-Piece Steel, 6", CP
Chainwheel
Steel, 36T x 1/2'' x 1/8'', CP
Bottom Bracket
Steel for OPC, Caged Bearings
Freewheel
20T x 1/2" x 1/8"
Chain
Taya 410B, 1/2" x 1/8", Black
Pedals
VP-560, 1/2", Black

Brakes

Front Brake
Alloy, Linear Pull, Silver
Front Brake Lever
Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock

Components

Handlebar
Steel, 27.6" Wide x 9" Rise x 25.4mm Clamp, CP
Stem
Steel, 25.4 x 205mm Quill x 60mm Ext. x 25.4 Clamp, CP
Headset
Steel, Caged Bearings, 22.2 x 30 x 27mm, CP
Grips
Heavy Duty Rubber, 125mm, Black
Saddle
Western Style, Black
Saddle Support Strut
Steel, 19" (23" Version Available Separately for Taller Riders)
Seat Post
Steel 12" (14" Version Available Separately for Taller Riders)
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type, Silver

Wheels

Front Wheel
24" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Rear Wheel
24" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Front Hub
Steel, 36H x 14G x 3/8" Bolt-On Axle
Rear Hub
Steel, Large Flange, 36H x 14G with Cartridge Bearings, Black
Spokes
14G Stainless Steel with CP Brass Nipples
Rims
HJC 24" x 36H x 12G, Alloy, Silver
Tires
Innova 24" x 1.75", Black Wall
Tubes
24" x 1.75", Schrader Valve

Included Extras

Chain Guard
Steel, Painted
Basket
Steel, White Vinyl Coated, 21" Long x 15" Wide x 9" High
Front Fender
Steel, Full Wrap, W/Single Strut, Stainless Steel

Weight

Trike Weight
49 Lbs.
Rider Weight Limit
250 Lbs.
Basket Weight Limit
50 Lbs. (Not Designed for People or Pets)
Recommended Fit
5'0" to 6'2"

Notes

Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

Bike Geometry

Bike Geometry Diagram
Measurement Ref 18"
Seat Tube, Center To Top A 17.5"
Top Tube, Effective B 26.5"
Head Tube C 5.5"
Seat Tube Angle D 70°
Head Tube Angle E 70°
Chainstay F 23.5"
Wheelbase G 49.2"
Bottom Bracket Drop H 2.4"
Bottom Bracket To Ground H1 9.3"
Fork Offset I 1.8"
Stack L 20.8"
Step-Thru / Standover N 13.5"
Minimum Step Through O 13.5"
Minimum Saddle To Ground 26.5"
Minimum Saddle To Pedal 26.0"
Minimum Saddle To Pedal, Trike 26.0"
Maximum Saddle To Pedal, Trike 30.0"
Max Seat to Pedal (XL Post / Strut) 34.5"
Suggested Rider Height 5'0"
Maximum Rider Height 6'2"
Overall Length, Trike U 72"
Overall Height, Trike W 45"
Overall Width, Trike V 30.3"
Wheel Size 24"
Crank Length 152mm
Stem Length 60mm
Handlebar Width 27.6" Wide / 9" Rise
