Boardwalk 20

671354

Regular price$529.99
/
Manufacturer's Suggested Retail Price excludes shipping costs, assembly, and taxes.

Color
Size
Style
Loading store locator from Stockist store locator...

Details

Product Specifications

Frameset

Frame
6061 Series Aluminum, TIG-Welded
Fork
1-1/8" High-Tensile Steel, Straight Legs

Drivetrain

Crankset
3-Piece Alloy, 127mm, Silver
Chainring
Steel, 32T x 1/2" x 1/8", ED Black
Bottom Bracket
Sealed Cartridge, 68 x 115mm
Sprocket
19T x 1/2'' x 1/8''
Chain
K.M.C. Z410 RB, 1/2" x 1/8", Silver
Pedals
9/16", Black, Large Platform

Brakes

Rear Brake
KT / Wheel Master Internal Coaster Brake

Components

Handlebar
Steel, 21.3" Wide x 3.5" Rise x 15 Deg. Bend, ED Black
Stem
Alloy, 25.4 x 180mm Quill x 80mm Ext. x 25.4mm Clamp
Headset
Steel, 25.4 x 34 x 30mm, Semi Cartridge Bearings, ED Black
Grips
Kraton Rubber-Gel W/Inner Foam, Black

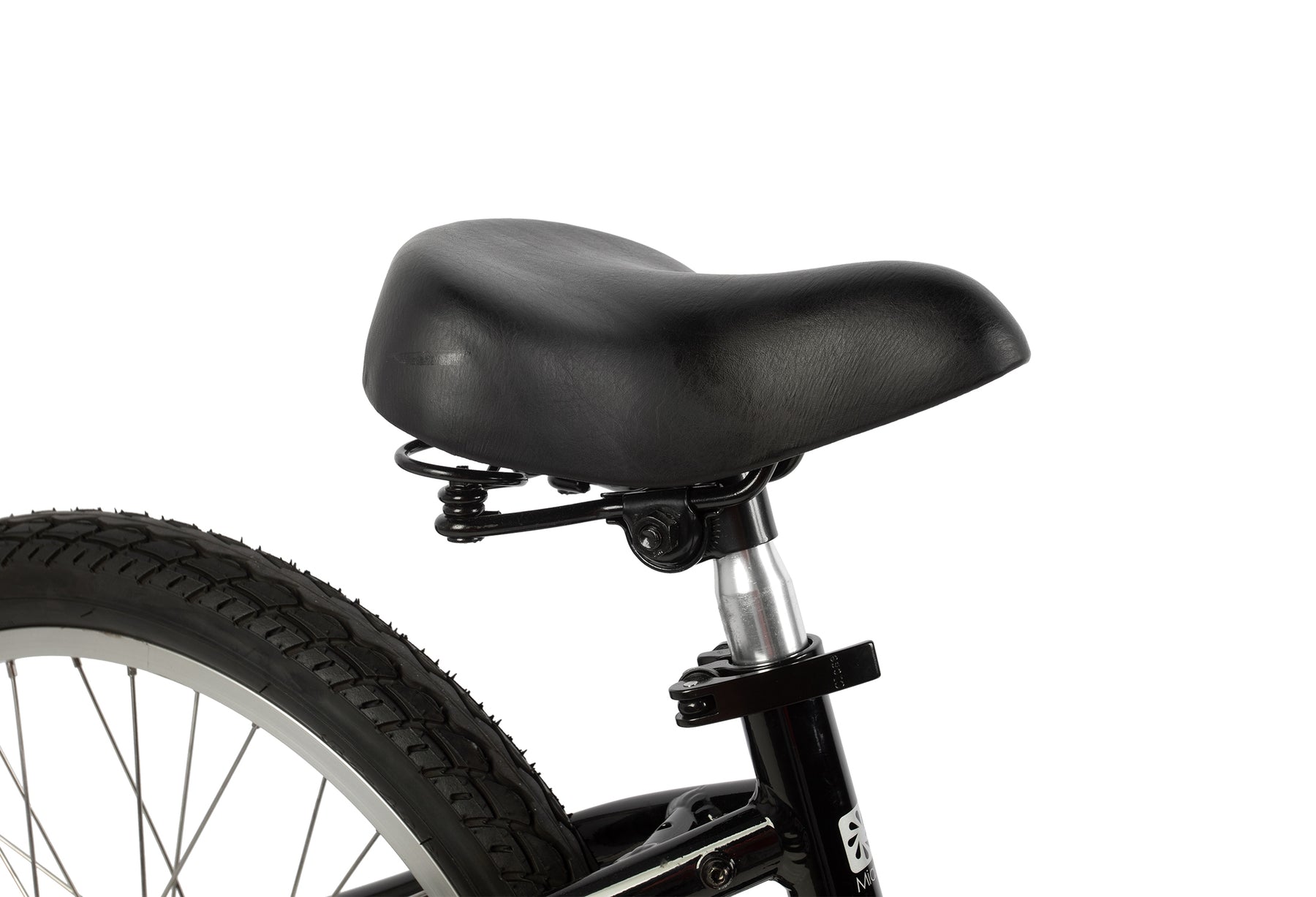

Saddle
Youth Cruiser, Coil Spring Suspension, Black
Seat Post
Alloy w/o Clamp, 27.2 x 300mm, Silver
Seat Clamp
Alloy, 31.8mm I.D., with Q/R, Black

Wheels

Front Wheel
20" x 1.75 x 36H x 14G Alloy-Cruiser, Bolt-On
Rear Wheel
20" x 1.75 x 36H x 14G Alloy-Cruiser, with KT / Wheel Master Coaster Brake
Front Hub
Alloy, Sealed, 36H x 14G x 3/8" Bolt-On Axle, Silver
Rear Hub
KT / Wheel Master HD Alloy Coaster Brake, 36H x 14G
Spokes
14G Stainless Steel with Brass Nipples (F-189 / R-186 / N-)
Rims
20" x 1.75 x 36H x 14G, Alloy, Silver
Tires
20 x 2.125", Black Wall
Tubes
20'' x 2.125'', Schrader Valve

Included Extras

Kickstand
Alloy, Center Mount, Silver

Weight

Bike Weight
22 Lbs.
Rider Weight Limit
250 Lbs.

Notes

Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

Bike Geometry

Bike Geometry Diagram
Measurement Ref 12" 12"
Seat Tube, Center To Top A 12" 12"
Top Tube, Effective B 18.9" 18.9"
Head Tube C 4.5" 4.5"
Seat Tube Angle D 71° 71°
Head Tube Angle E 69° 69°
Chainstay F 14.6" 14.6"
Wheelbase G 35.3" 35.3"
Bottom Bracket Drop H 1.4" 1.4"
Bottom Bracket To Ground H1 8.6" 8.6"
Fork Offset I 1.6" 1.6"
Trail J 50mm 50mm
Axle To Crown K 12.8" 12.8"
Step-Thru / Standover N 18" 18"
Minimum Saddle To Ground 24.5" 24.5"
Suggested Rider Inseam 22" 22"
Wheel Size 20" 20"
Crank Length 5" 5"
Stem Length 80mm 80mm
Handlebar Width 21.3" 21.3"
