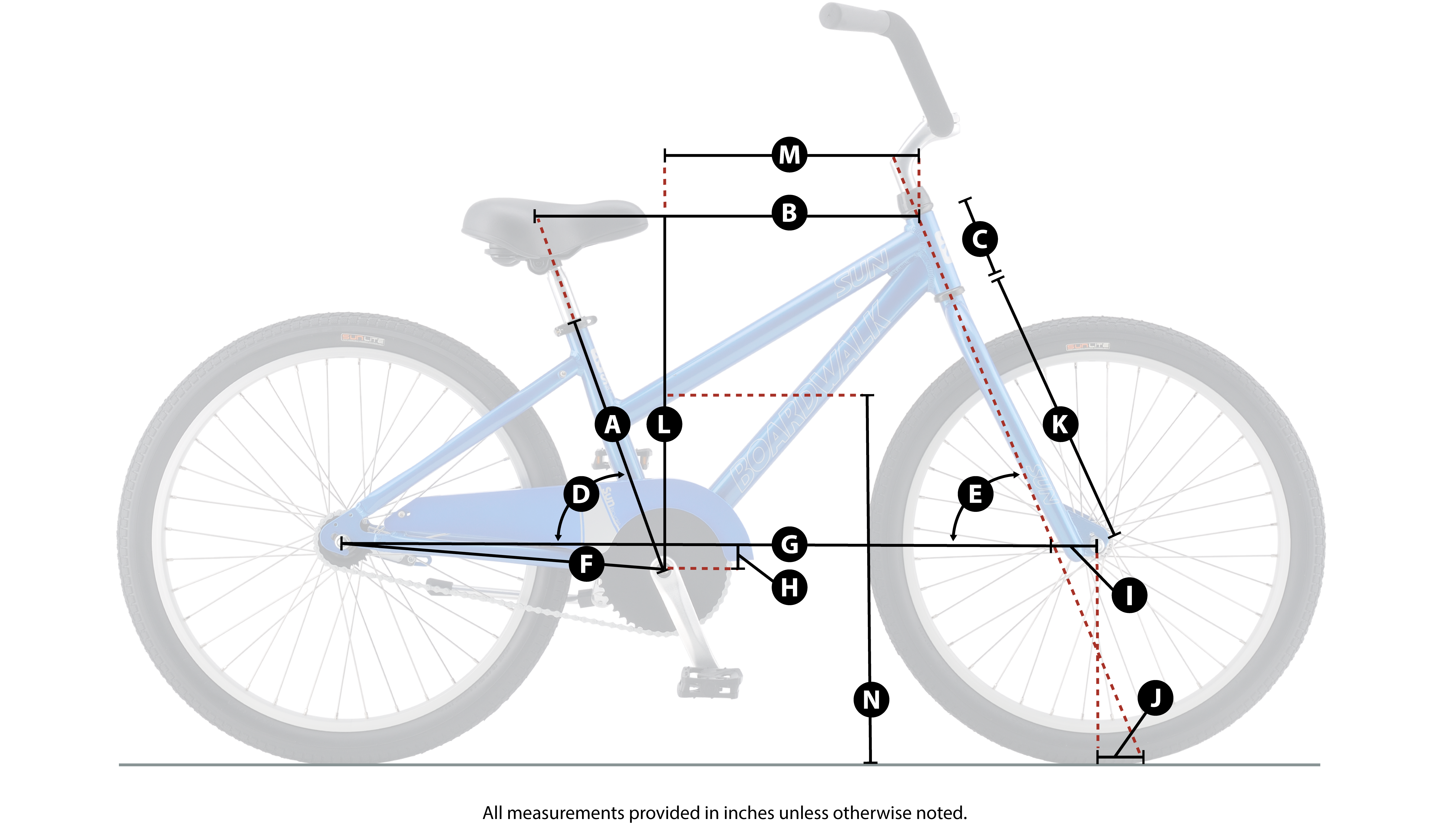

| Measurement |
Ref |
14" Step-Thru |
| Frame Size |
A |
14" Step-Thru |
| Seat Tube, Center To Top |
A |
14" |
| Top Tube, Effective |
B |
20.9" |
| Top Tube, Actual |
B4 |
20" |
| Head Tube |
C |
4.3" |
| Seat Tube Angle |
D |
70° |
| Head Tube Angle |
E |
70° |
| Chainstay |
F |
17" |
| Wheelbase |
G |
39.8" |
| Bottom Bracket Drop |
H |
1.8" |
| Fork Offset |
I |
2.4 |
| Trail |
J |
40mm |
| Axle To Crown |
K |
13.4" |
| Step-Thru / Standover |
N |
22" |
| Minimum Step Through |
O |
22" |
| Suggested Rider Inseam |
|
24" |
| Wheel Size |
|
24" |
| Crank Length |
|
170mm |
| Stem Length |
|
100mm |
| Handlebar Width |
|
28" Wide / 6.7" Rise |
