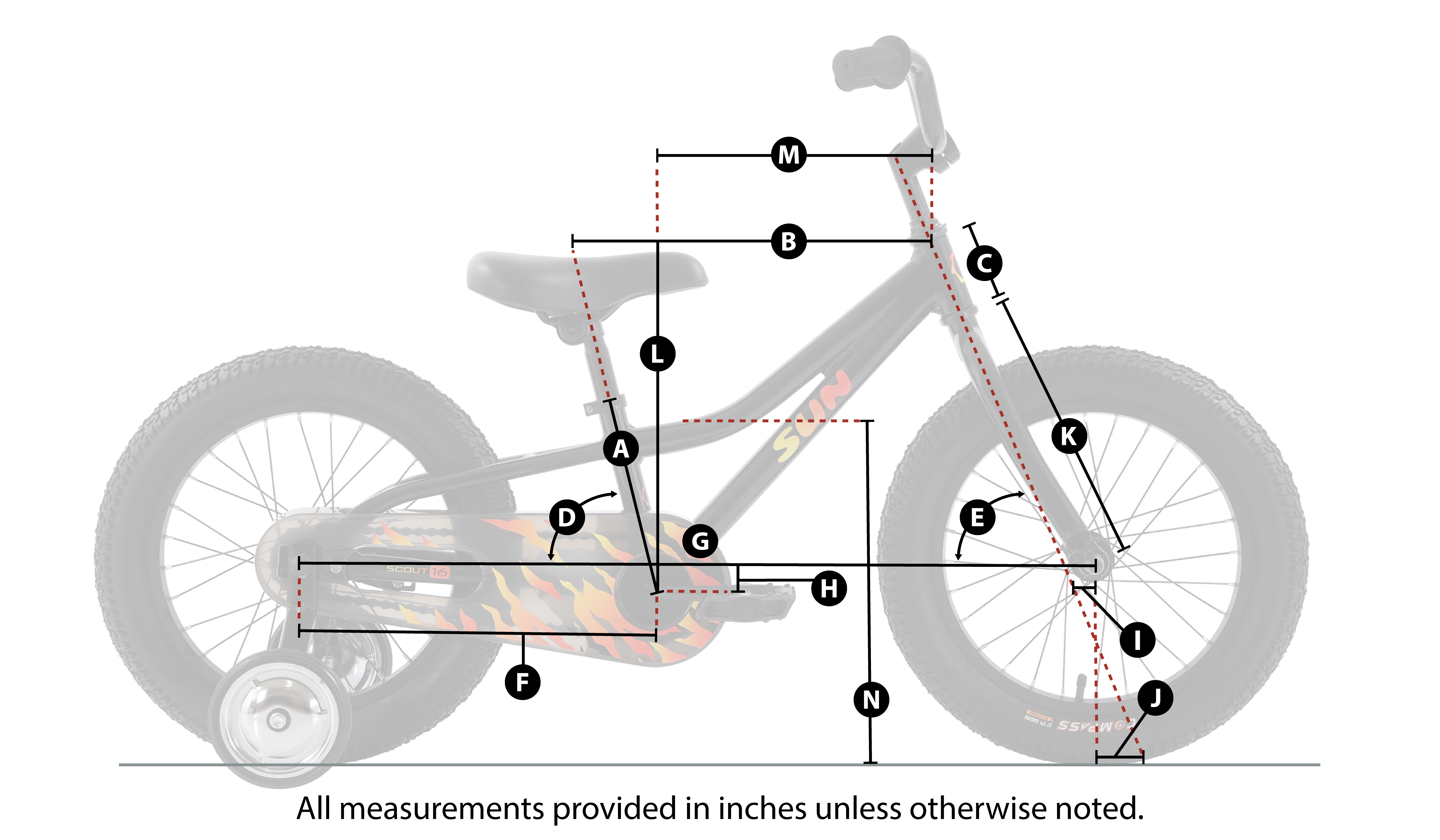

| Measurement |
Ref |
8" |
| Frame Size |
A |
8" |
| Top Tube, Effective |
B |
14.4" |
| Head Tube |
C |
2.95" |
| Seat Tube Angle |
D |
76° |
| Head Tube Angle |
E |
69° |
| Chainstay |
F |
13.6" |
| Wheelbase |
G |
30.7" |
| Bottom Bracket Drop |
H |
1.3" |
| Fork Offset |
I |
1.4" |
| Trail |
J |
36mm |
| Axle To Crown |
K |
9.44" |
| Step-Thru / Standover |
N |
14" |
| Minimum Saddle To Ground |
|
18.5" |
| Minimum Saddle To Pedal |
|
15" |
| Maximum Saddle To Pedal |
|
18" |
| Suggested Rider Height |
|
39" Tall |
| Maximum Rider Height |
|
46" Tall |
| Wheel Size |
|
16" |
| Crank Length |
|
3.5" |
| Stem Length |
|
3.1" |
| Handlebar Width |
|
19.7" |
