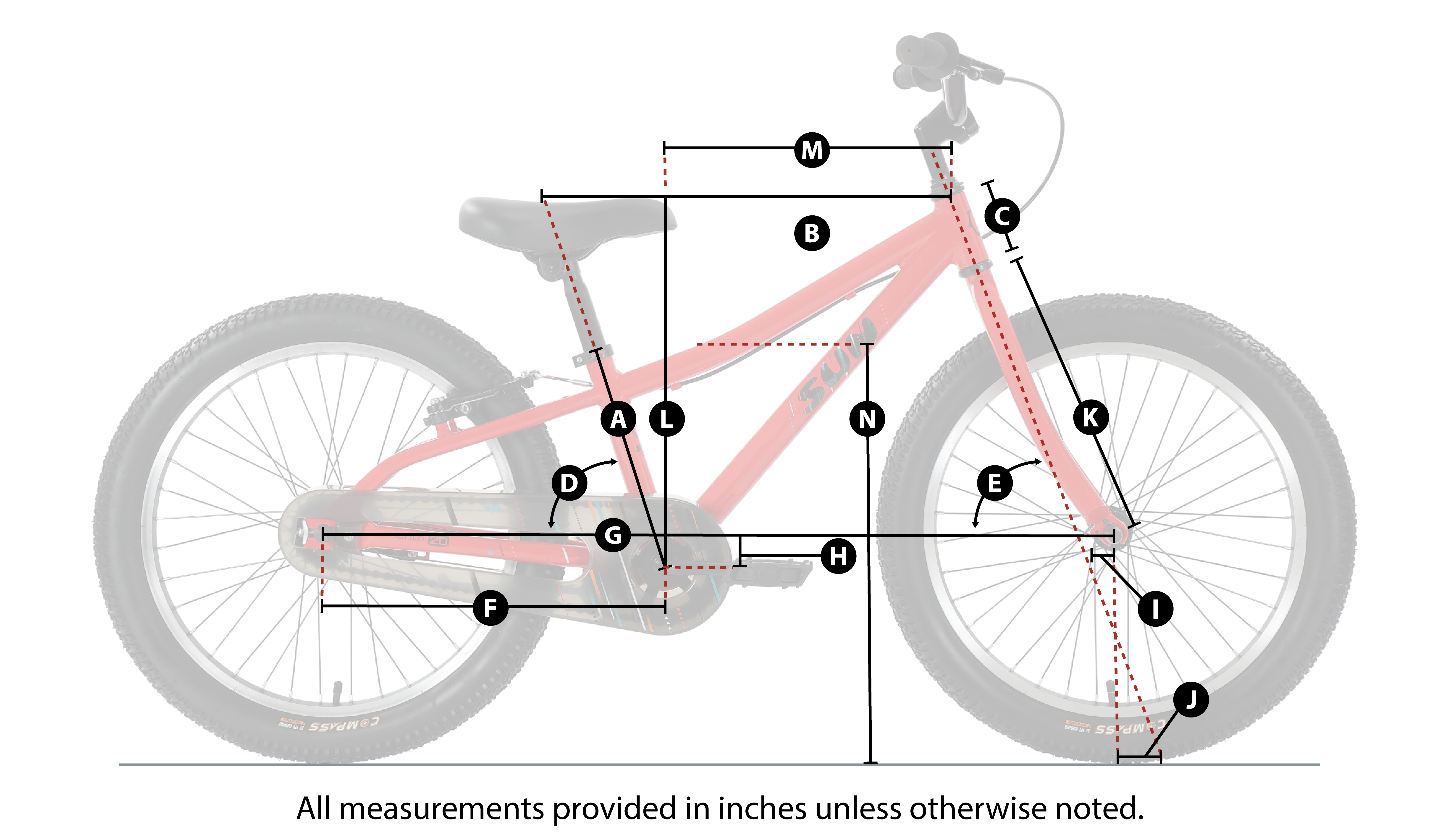

| Measurement |
Ref |
10" |
| Frame Size |
A |
10" |
| Top Tube, Effective |
B |
17.8" |
| Head Tube |
C |
3.1" |
| Seat Tube Angle |
D |
72° |
| Head Tube Angle |
E |
69° |
| Chainstay |
F |
14.6" |
| Wheelbase |
G |
34.3" |
| Bottom Bracket Drop |
H |
1.7" |
| Fork Offset |
I |
1.6" |
| Trail |
J |
2.2" |
| Axle To Crown |
K |
11.4" |
| Step-Thru / Standover |
N |
18" |
| Minimum Saddle To Ground |
|
22.25" |
| Minimum Saddle To Pedal |
|
18" |
| Maximum Saddle To Pedal |
|
23" |
| Suggested Rider Height |
|
45-52" Tall |
| Wheel Size |
|
20" |
| Crank Length |
|
4.5" |
| Stem Length |
|
3.1" |
| Handlebar Width |
|
21.3" |
