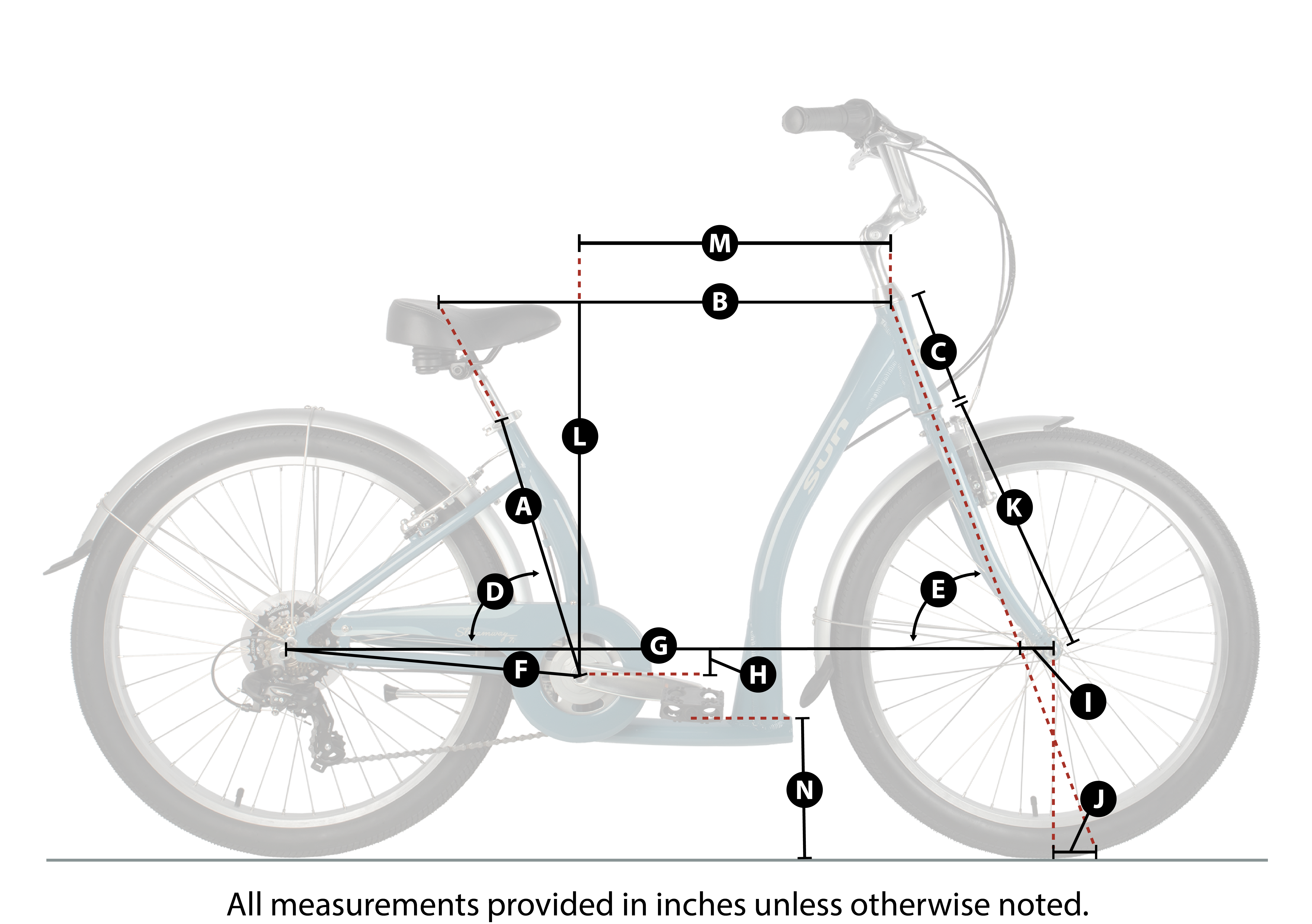

| Measurement |
Ref |
16" |
| Frame Size |
A |
16" |
| Top Tube, Effective |
B |
26.8" |
| Head Tube |
C |
6.7" |
| Seat Tube Angle |
D |
84.9° |
| Head Tube Angle |
E |
69° |
| Chainstay |
F |
17.3" |
| Wheelbase |
G |
44.9" |
| Bottom Bracket Drop |
H |
1.6" |
| Fork Offset |
I |
1.8" |
| Trail |
J |
74mm |
| Axle To Crown |
K |
16" |
| Stack |
L |
22.2" |
| Reach |
M |
18.2" |
| Step-Thru / Standover |
N |
8" |
| Minimum Step Through |
O |
8" |
| Minimum Saddle To Ground |
|
31.5" |
| Minimum Saddle To Pedal |
|
26.5" |
| Suggested Rider Height |
|
5'2" to 5'8" |
| Wheel Size |
|
26" |
| Crank Length |
|
170mm |
| Stem Length |
|
180mm Quill / 90mm Ext. |
| Handlebar Width |
|
26.8" Wide / 6.7" Rise |
