Atlas Transit SD
Atlas Transit SD
Atlas Transit SD
Atlas Transit SD

Atlas Transit SD

670619

Regular price$749.99
/
Manufacturer's Suggested Retail Price excludes shipping costs, assembly, and taxes.

Color
Size
Style

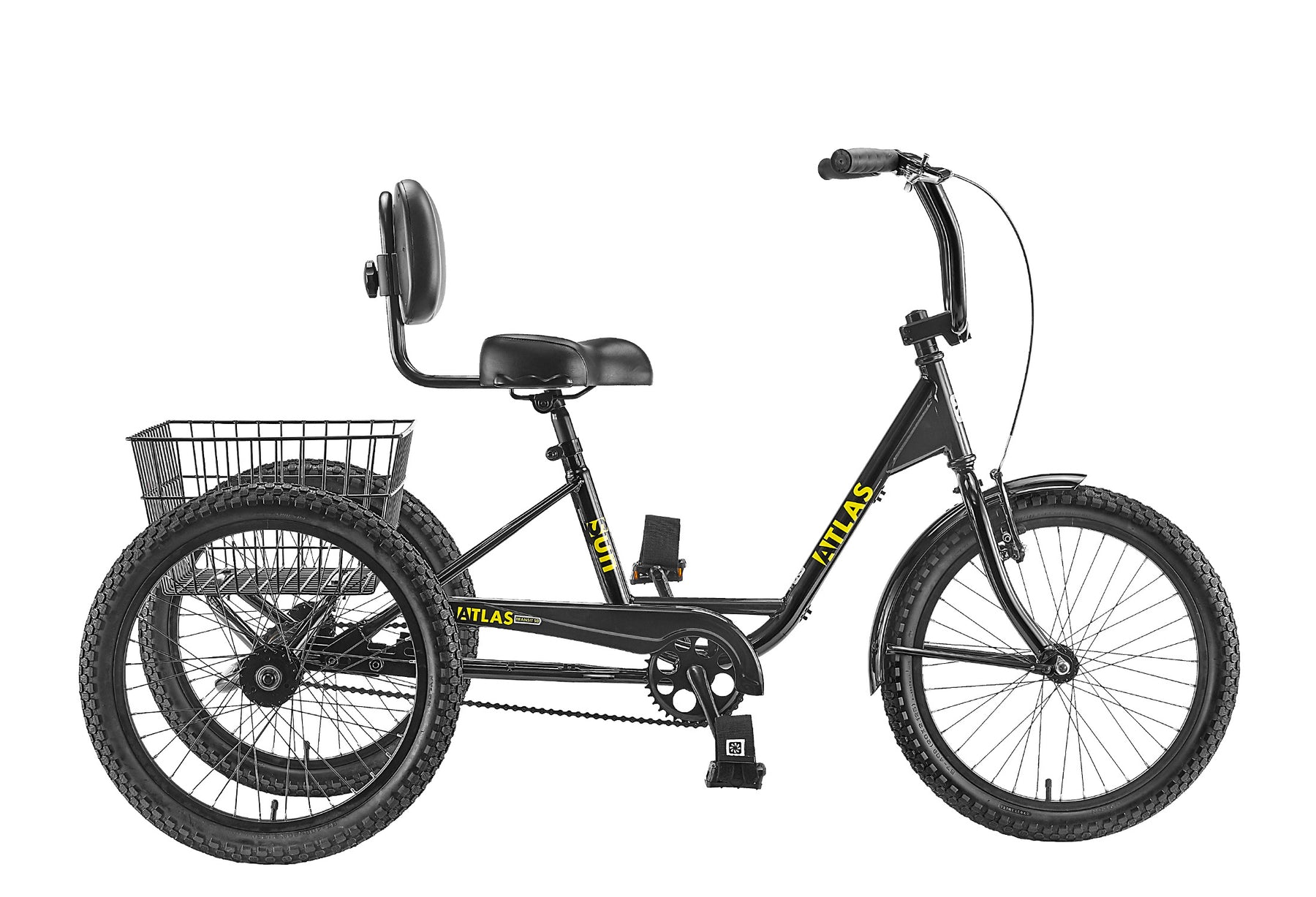

The Atlas Transit is our medium duty trike perfect for hauling groceries from the local market or transporting packages around a warehouse. The frame is designed with the same Low-Step as our Traditional trike making for easy on and off access. Along with a complement of durable components, the 24" version is customizable with 3 different wheel styles. The 20" SD version comes stock with alloy wheels, includes a Sun custom trike saddle with adjustable backrest, and Velcro toe straps for secure foot placement.

  • High-tensile steel Low-Step frame
  • Single-speed drivetrain (Additional gearing options available separately)
  • Alloy linear-pull front brake with parking lock (Additional brake options available separately)
  • One-piece steel crank with sealed bottom bracket
  • Alloy rims with stainless steel spokes
  • 20" x 2.125" multi-condition tires
  • 11" high-rise steel handlebar and threadless MX stem, rubber grips
  • Sun cruiser saddle with adjustable back rest
  • Steel chain guard and front fender
  • Platform pedals with adjustable velcro toe straps
  • Vinyl coated heavy duty steel wire basket
  • All components coated with ED black finish to resist rust
Loading store locator from Stockist store locator...

Details

Product Specifications

Frameset

Frame
High-Tensile Steel, TIG-Welded
Frame Rear Unit
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Fork
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets

Drivetrain

Crank Set
One-Piece Steel, 5-1/2", Black
Chainwheel
Steel, 36T x 1/2'' x 1/8'', Black
Bottom Bracket
Steel for OPC, Caged Bearings with Seal, Black
Freewheel
20T x 1/2" x 1/8"
Chain
1/2" x 1/8", 118 Links Total
Pedals
VP 875, Slip Resistant Top, 1/2", Black

Brakes

Front Brake
Alloy, Linear Pull
Front Brake Lever
Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock

Components

Handlebar
Steel, 30" Wide x 11" Rise x 22.2mm Clamp
Stem
Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp
Headset
Steel, Threadless, 28.6 x 34 x 30mm
Grips
Heavy Duty Rubber, 125mm, Black
Saddle
Youth Cruiser, Elastomer Suspension, Adjustable Backrest
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12", Black
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type

Wheels

Front Wheel
20" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Rear Wheel
20" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Spokes
14G Stainless Steel ED black with brass nipples (F-188 / R-182 / N-12mm)
Rims
20" x 36H x 14G, Alloy, Black
Tires
20" x 2.125", Black Wall
Tubes
20" x 2.125", Schrader Valve

Included Extras

Chain Guard
Steel, Painted
Basket
Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High
Front Fender
Steel, W/Single Strut, Painted

Weight

Trike Weight
49 Lbs.
Rider Weight Limit
250 Lbs.
Basket Weight Limit
50 Lbs. (Not Designed for People or Pets)
Recommended Fit
4'6" to 5'2"

Notes

Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

Bike Geometry

Bike Geometry Diagram
