Details
Product Specifications
Frameset
Frame
High Tensile Steel, TIG-Welded
Frame Rear Unit
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Fork
1-1/8'' High Tensile Steel, Curved Tapered Legs, Double Eyelets
Drivetrain
Crank Set
One-Piece Steel, 6"
Chainwheel
Steel, 36T x 1/2'' x 3/32"
Bottom Bracket
Steel for OPC, Caged Bearings
Freewheel
Sunrace (7-Speed) 13-28T
Chain
KMC 1/2 x 3/32''

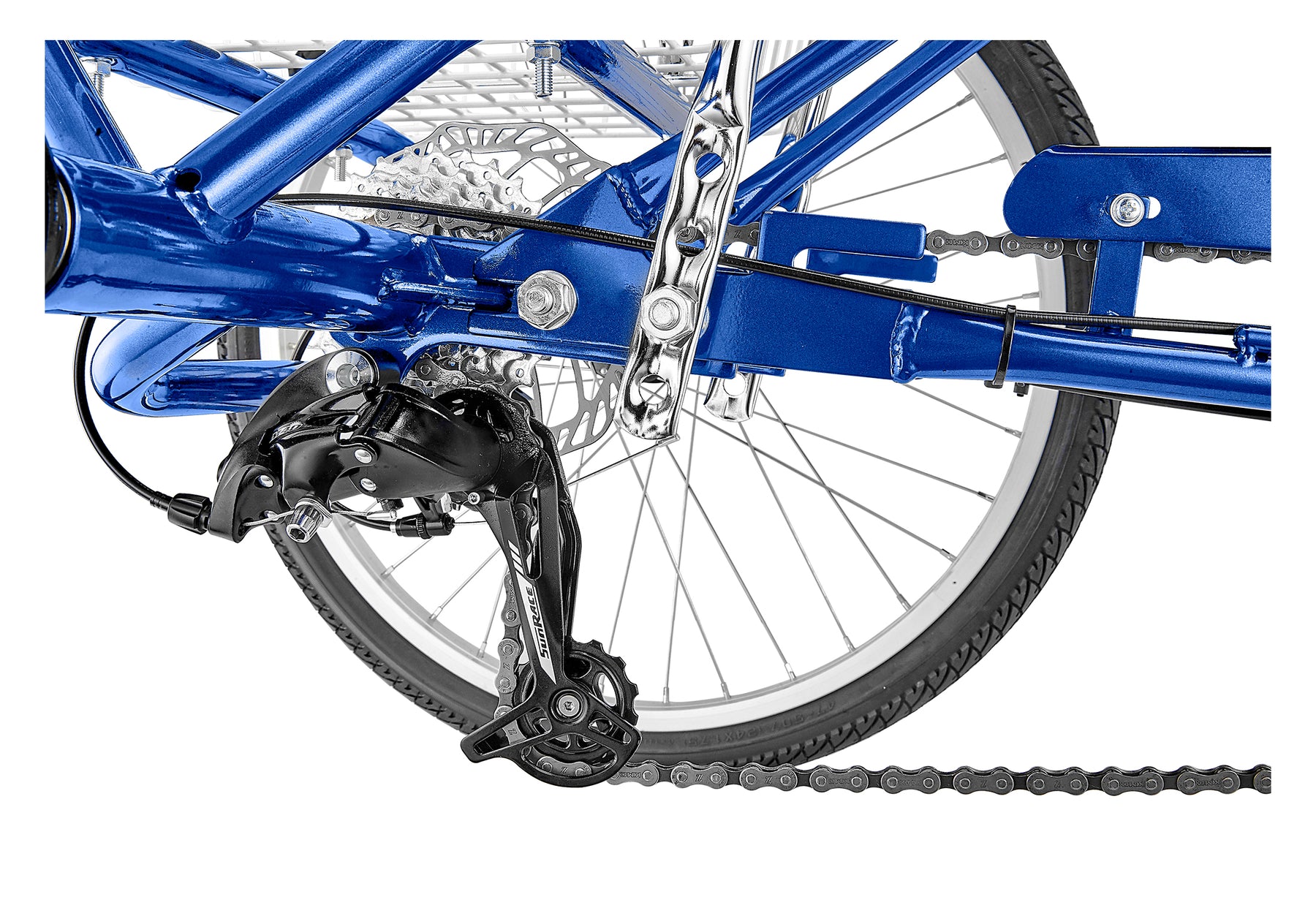

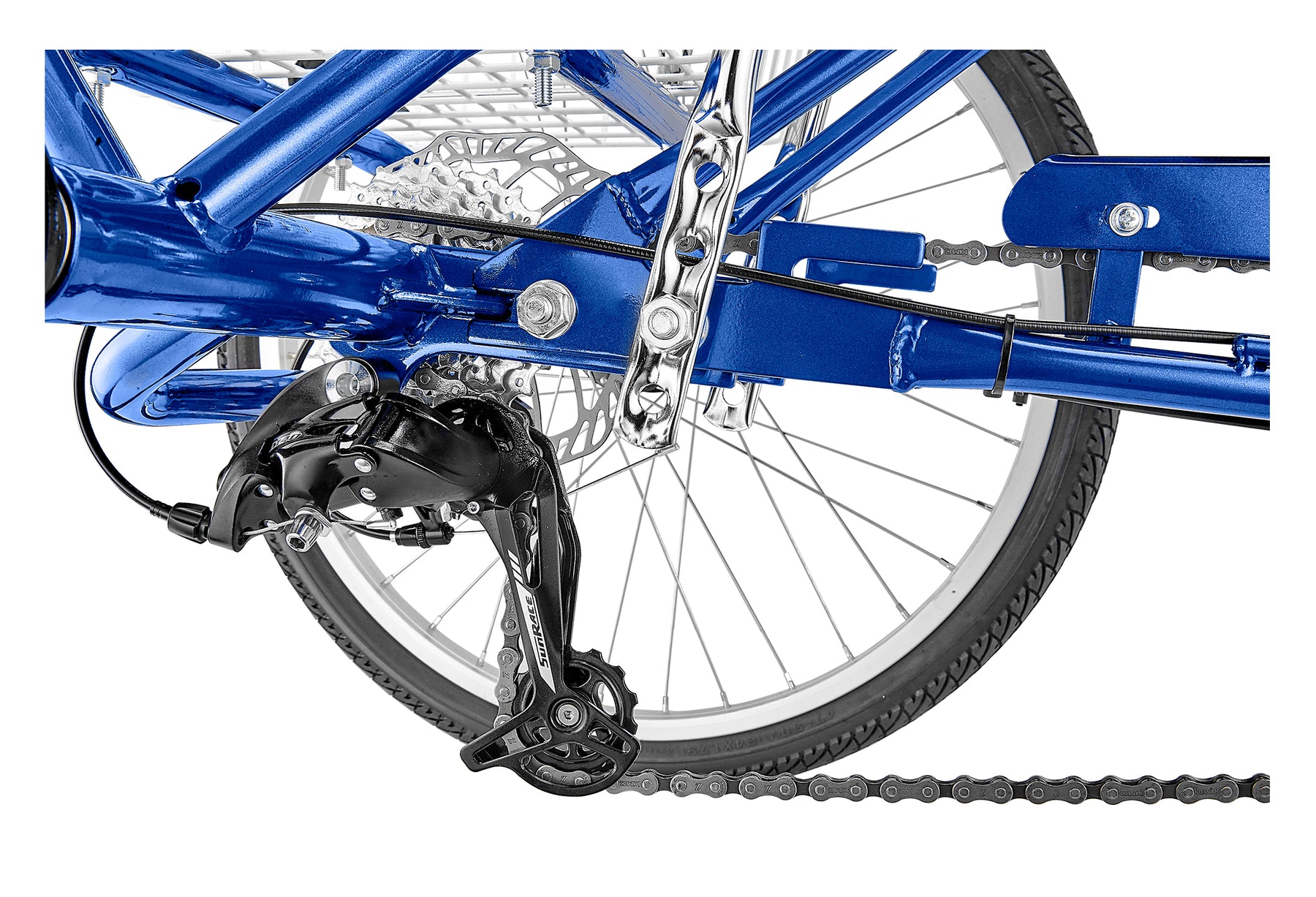

Rear Derailleur
SunRace RD-M41

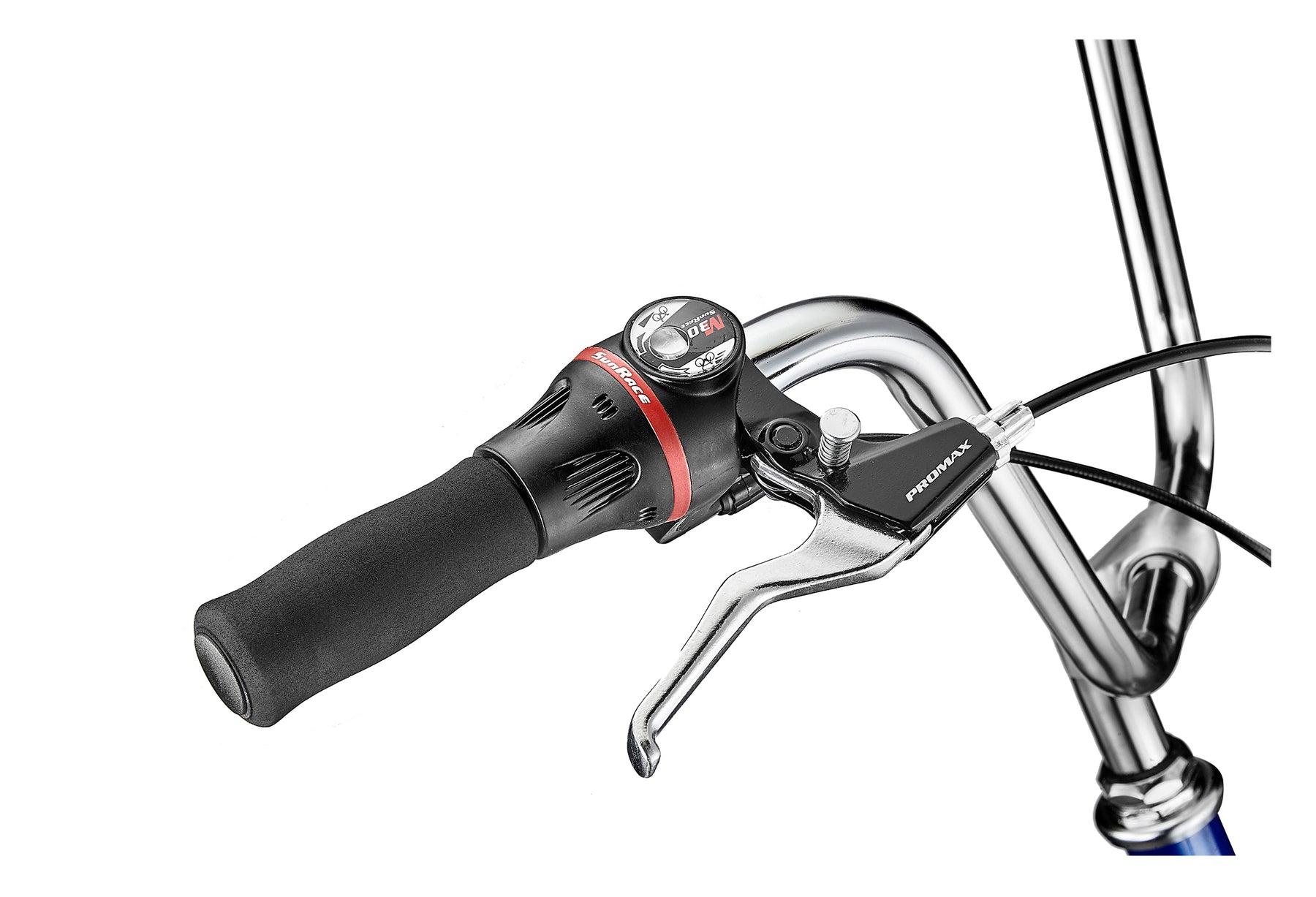

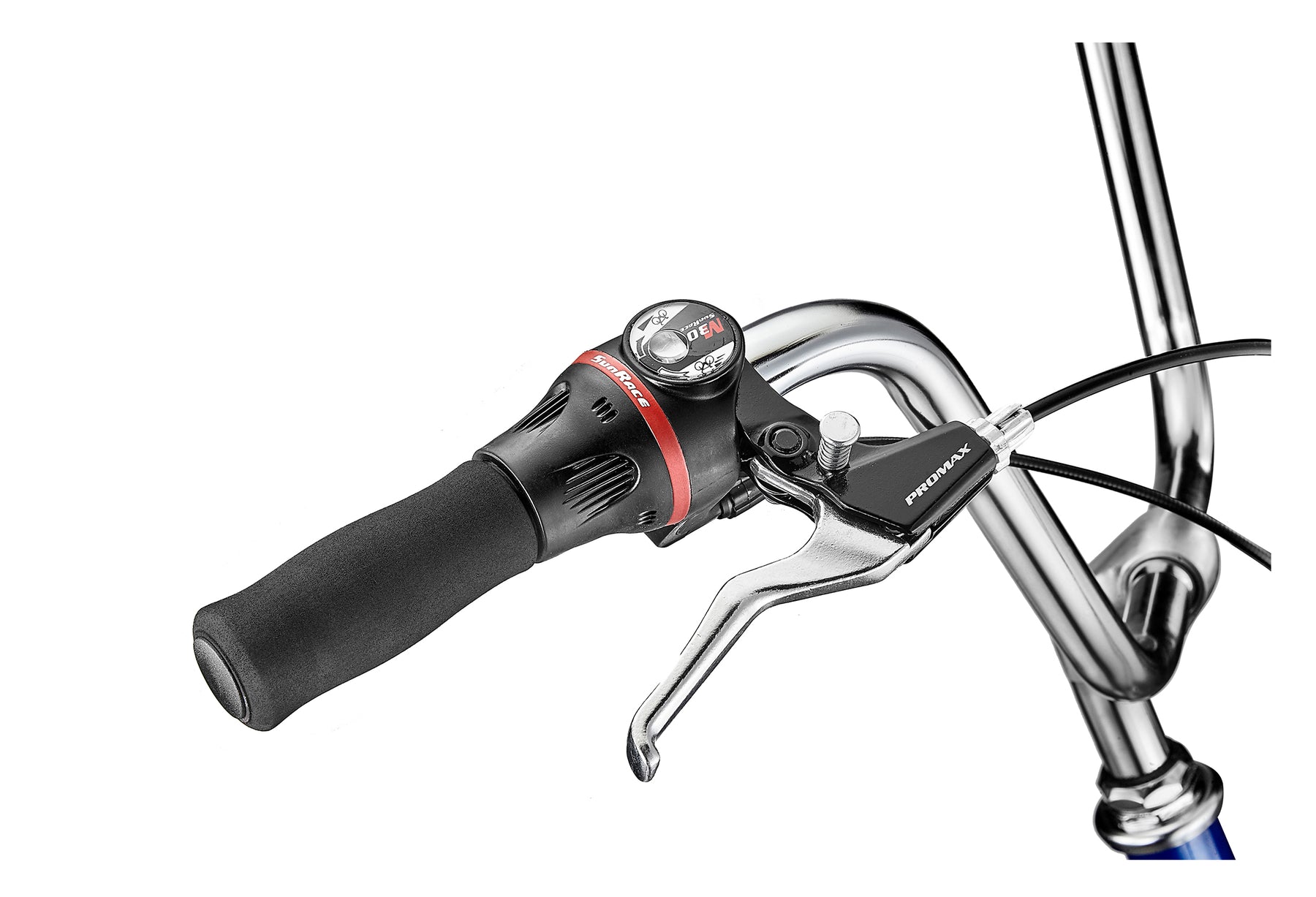

Rear Shifter
SunRace 7-Speed Twist Shifter
Pedals
Plastic, 1/2", Black Platform
Brakes
Front Brake
Alloy, Linear Pull

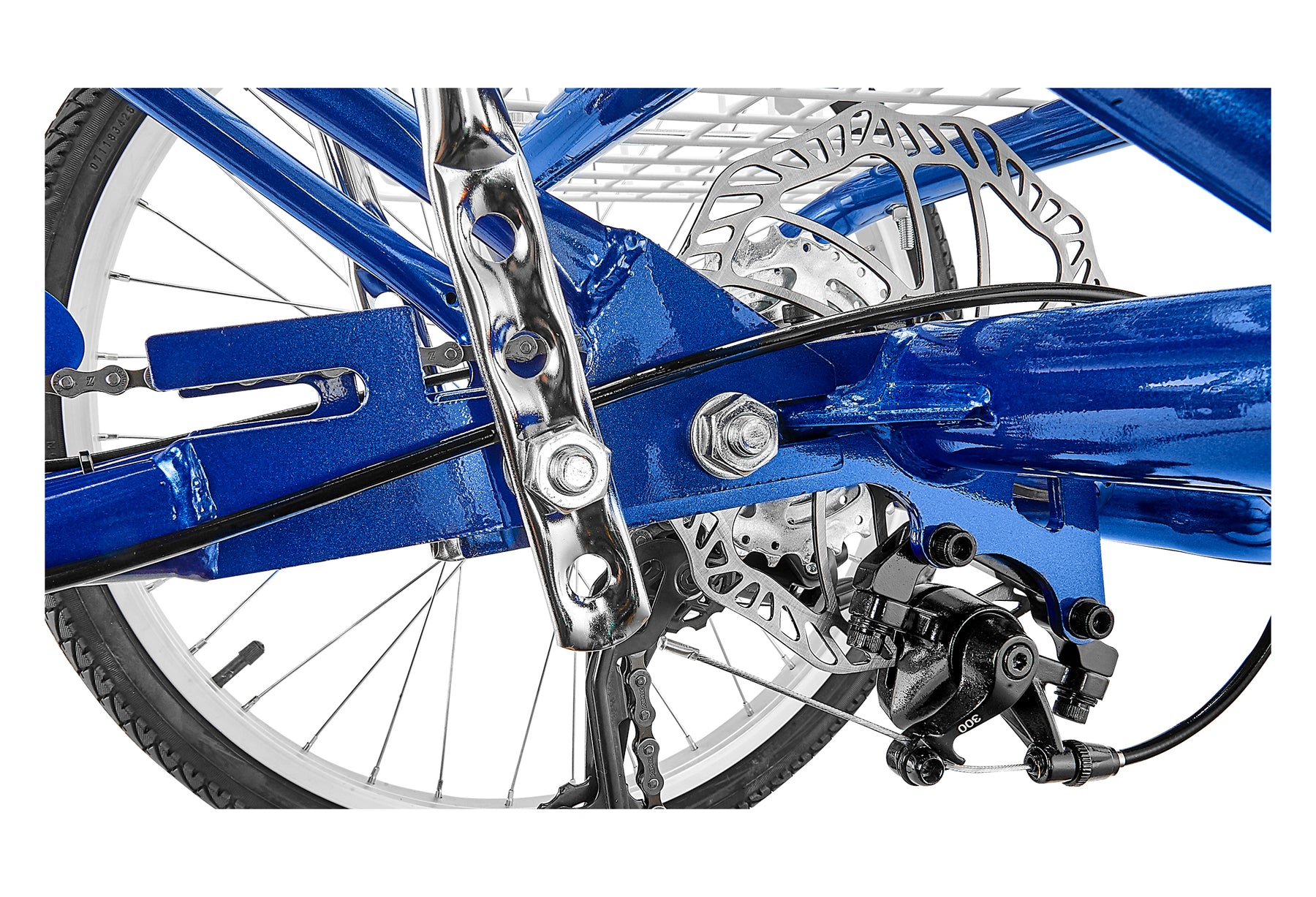

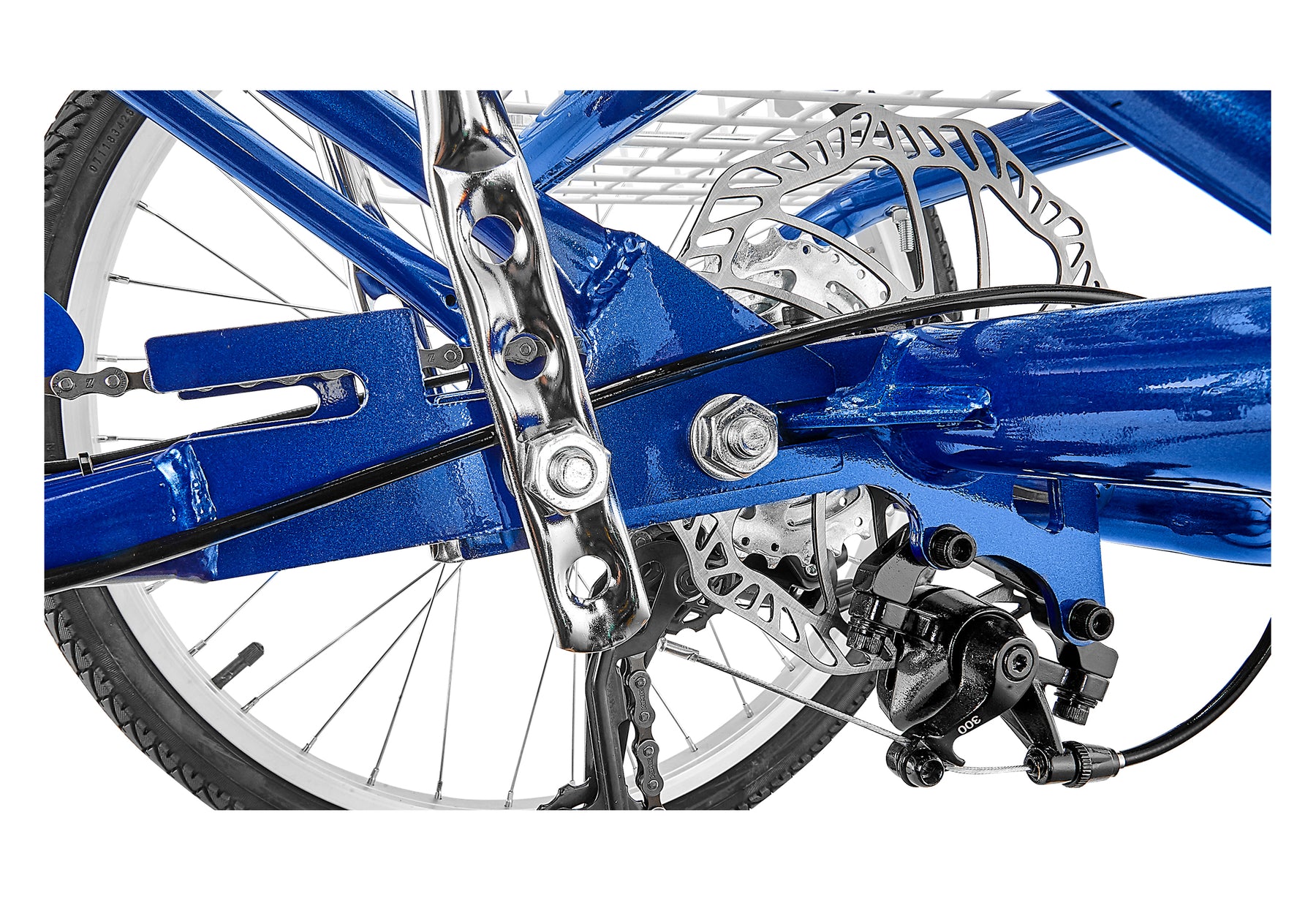

Rear Brake
Promax DSK-300 Mechanical Disk, 160mm Rotor
Front Brake Lever
Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock
Rear Brake Lever
Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock
Components
Handlebar
Steel, 27.6" Wide x 9" Rise x 25.4mm Clamp
Stem
Steel, 25.4mm, 205mm Quill x 60mm Ext
Headset
Steel, Caged Bearings, 25.4 x 34 x 30mm
Grips
High Density Foam Grips, 92mm/130mm
Saddle
Western Style, Black
Saddle Support Strut
Steel, 19" (23" Version Available Separately for Taller Riders)
Seat Post
Steel, 12" (14" Version Available Separately for Taller Riders)
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type
Wheels
Front Wheel
24" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Rear Wheel
24" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Front Hub
Steel, with 3/8" Bolt-On Axle
Rear Hub
Steel, Large Flange, with Cartridge Bearings
Spokes
14G Stainless Steel with brass nipples (F-237 / R-231 / N-14mm)
Rims
24" x 36H x 14G, Alloy
Tires
24" x 1.75, Black Wall
Tubes
24" x 1.75", Schrader Valve
Included Extras
Chain Guard
Steel, Painted

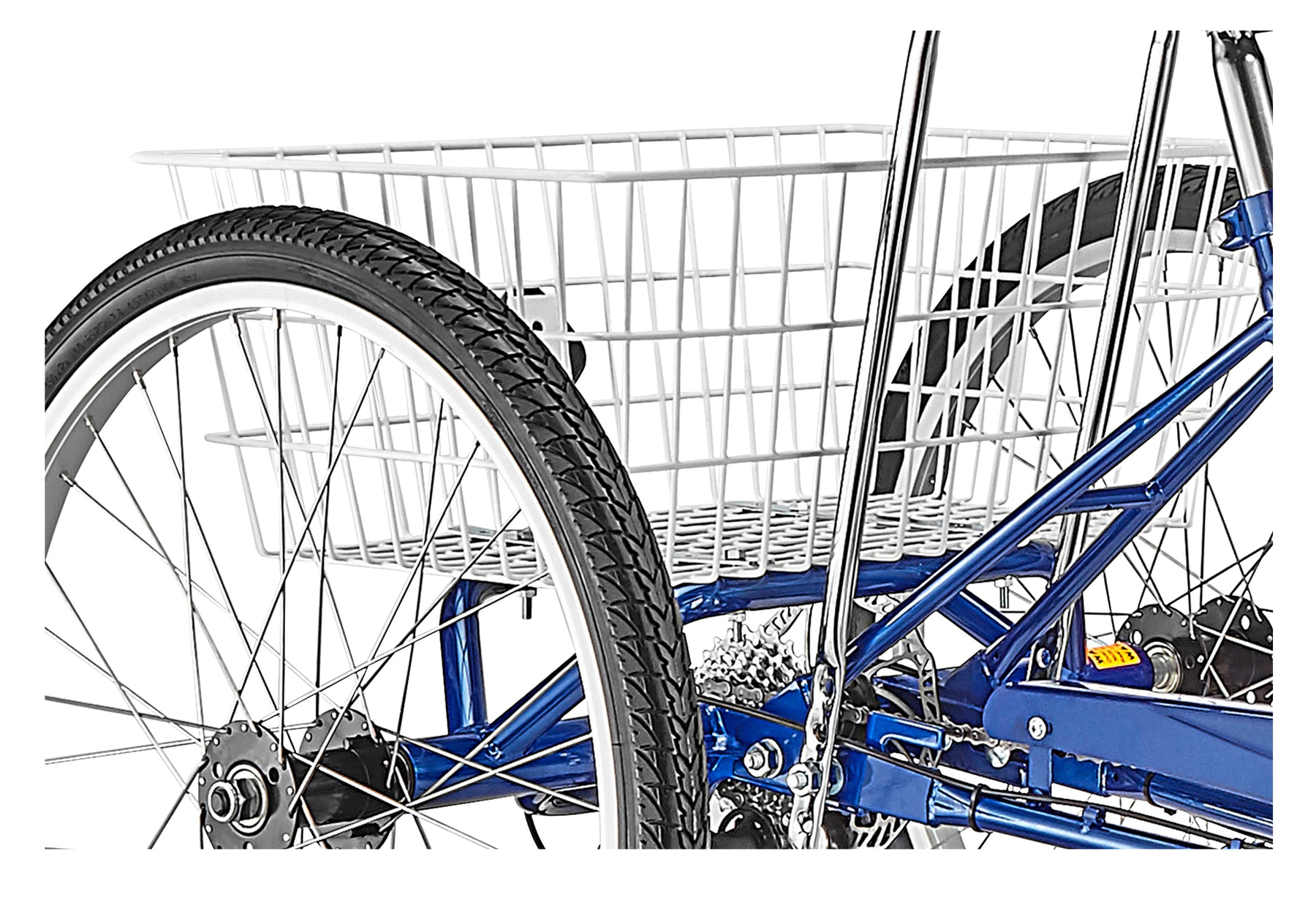

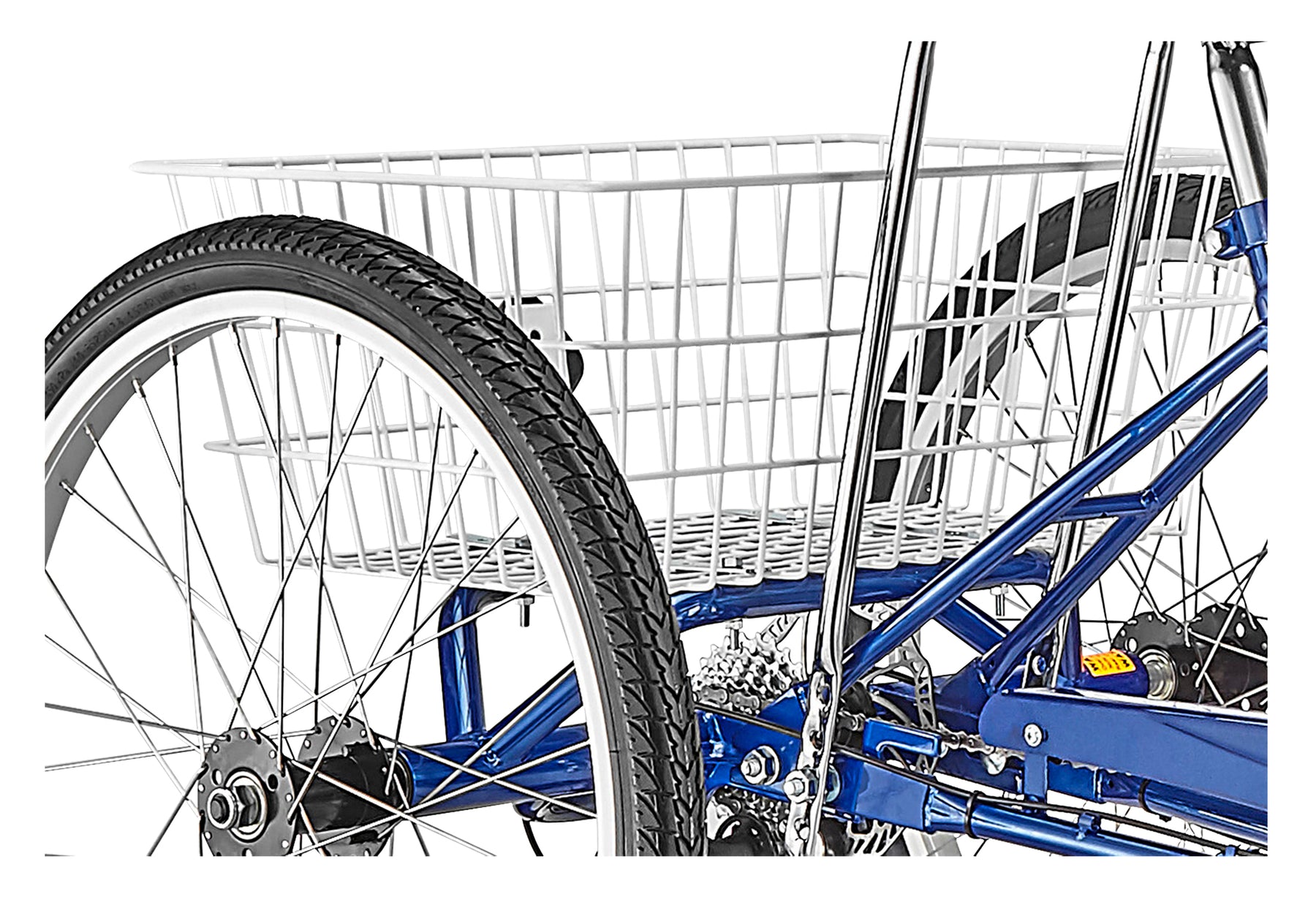

Basket
Steel, Vinyl Coated, 21" Long x 15" Wide x 9" High
Front Fender
Steel, Full Wrap, W/Single Strut, Stainless Steel
Weight
Trike Weight
56 Lbs.
Rider Weight Limit
250 Lbs.
Basket Weight Limit
50 Lbs. (Not Designed for People or Pets)
Recommended Fit
5'0" to 6'2"
Notes
Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
Bike Geometry

Measurement | Ref | 18" |
---|---|---|
Seat Tube, Center To Top | A | 17.5" |
Top Tube, Effective | B | 26.5" |
Head Tube | C | 5.5" |
Seat Tube Angle | D | 70° |
Head Tube Angle | E | 70° |
Chainstay | F | 23.5" |
Wheelbase | G | 49.2" |
Bottom Bracket Drop | H | 2.4" |
Bottom Bracket To Ground | H1 | 9.3" |
Fork Offset | I | 1.8" |
Stack | L | 20.8" |
Step-Thru / Standover | N | 13.5" |
Minimum Saddle To Pedal, Trike | 26.0" | |
Maximum Saddle To Pedal, Trike | 30.0" | |
Max Seat to Pedal (XL Post / Strut) | 34.5" | |
Suggested Rider Height | 5'0" | |
Maximum Rider Height | 6'2" | |
Overall Length, Trike | U | 72" |
Overall Height, Trike | W | 45" |
Overall Width, Trike | V | 30.3" |
Wheel Size | 24" | |
Crank Length | 152mm | |
Stem Length | 60mm | |
Handlebar Width | 27.6" Wide / 9" Rise |
