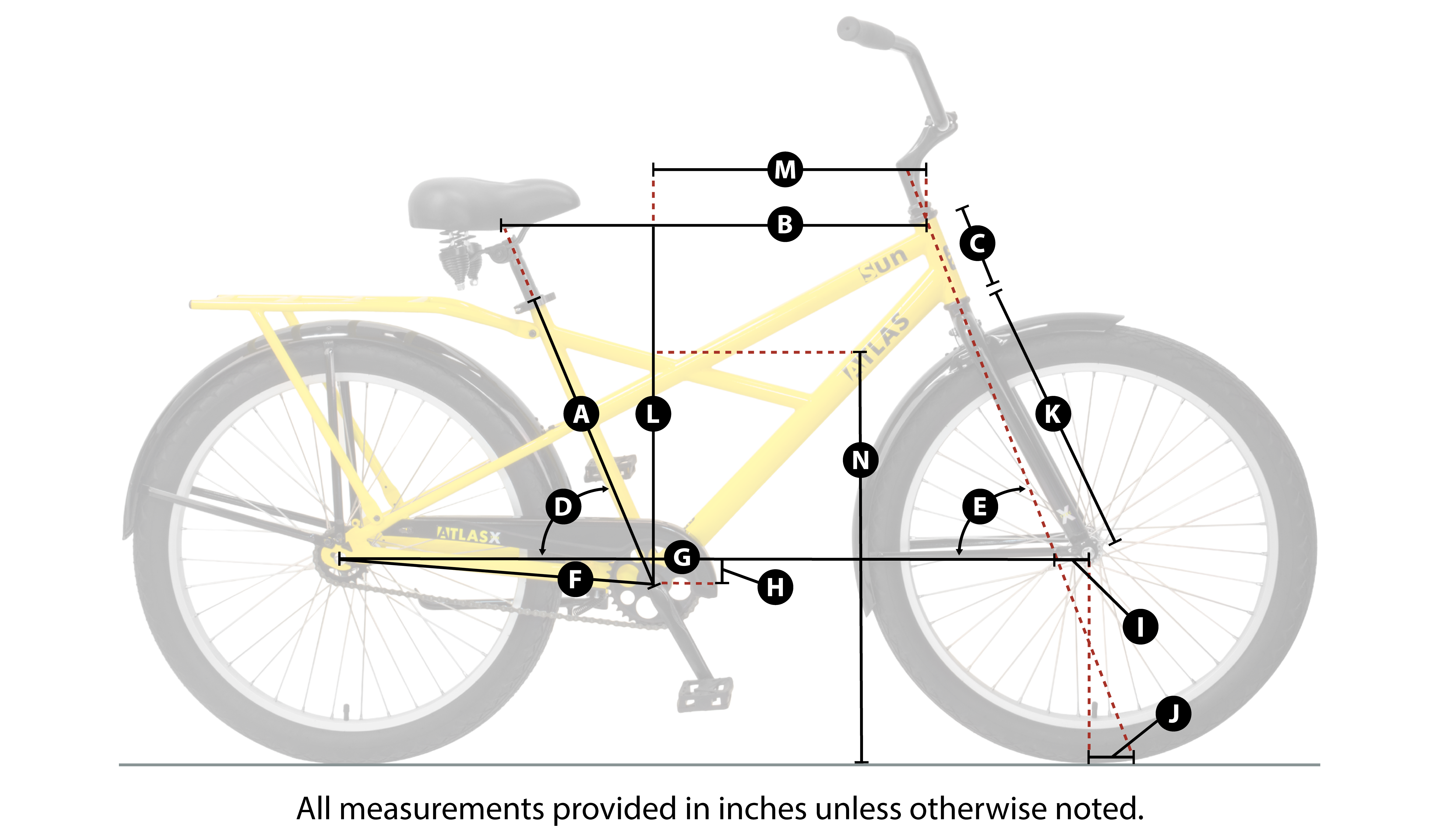

Atlas X-Type Geometry
| Frame Size | 18.5" | |
| Seat Tube, Center To Top | A | 18.5" |
| Top Tube, Effective | B | 25.5" |
| Top Tube, Actual | B4 | 25" |
| Head Tube | C | 5.1" |
| Seat Tube Angle | D | 68 |
| Head Tube Angle | E | 71 |
| Chainstay | F | 19.3" |
| Wheelbase | G | 46" |
| Bottom Bracket Drop | H | 1.9 |
| Fork Offset | I | 1.8" |
| Axle To Crown | K | 15.2" |
| Step-Thru / Standover | N | 25" |
| Minimum Saddle To Ground | 34" | |
| Minimum Saddle To Pedal | 30.5" | |
| Suggested Rider Inseam | 30" | |
| Wheel Size | 26" | |
| Crank Length | 6.5" | |
| Stem Length | 3.1" | |
| Handlebar Width | 28.3" |
