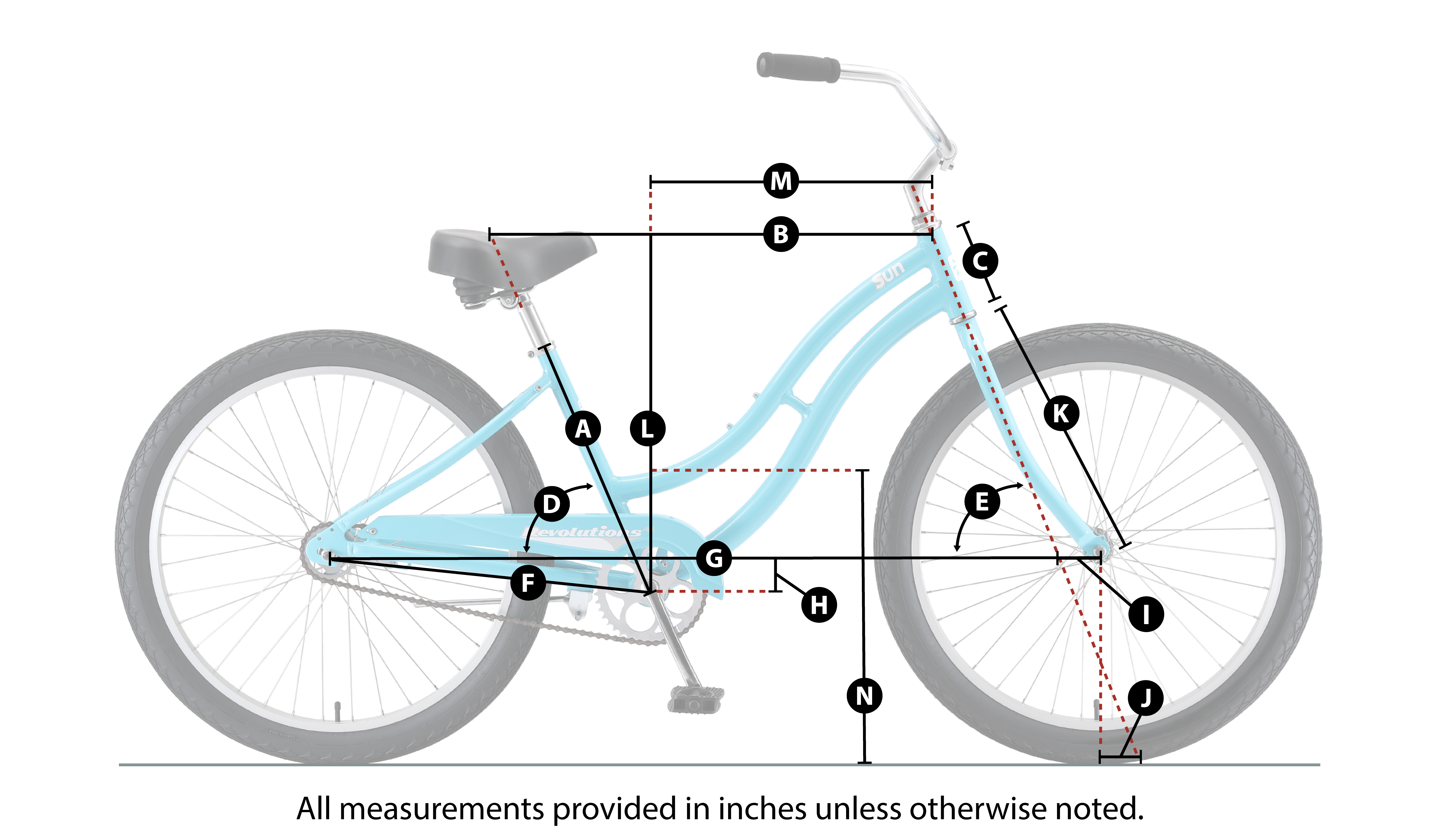

Frame Size 16" Step-Thru 18.5" Step-Over
Seat Tube, Center To Top A 16" 18.5"
Top Tube, Effective B 25.9" 27"
Head Tube C 5.3" 6.7"
Seat Tube Angle D 67° 67°
Head Tube Angle E 69° 69°
Chainstay F 19.4" 19.4"
Wheelbase G 45.9" 46.9"
Bottom Bracket Drop H 2.4" 2.4"
Fork Offset I 2.4" 2.4"
Axle To Crown K 14.6" 14.6"
Step-Thru / Standover N 18.5" 31.5"
Minimum Saddle To Ground 30.5" 33"
Minimum Saddle To Pedal 27" 29.5"
Maximum Saddle To Pedal 35" 37"
Suggested Rider Height 5'0' - 5'8" 5'4" - 6'2"
Suggested Rider Inseam 25" - 32" 27.5" - 34.5"
Wheel Size 26" 26"
Crank Length 170 mm 170 mm
Stem Length 80 mm 80 mm
Handlebar Width 27.5" Wide / 8.4" Rise 27.5" Wide / 8.4" Rise
